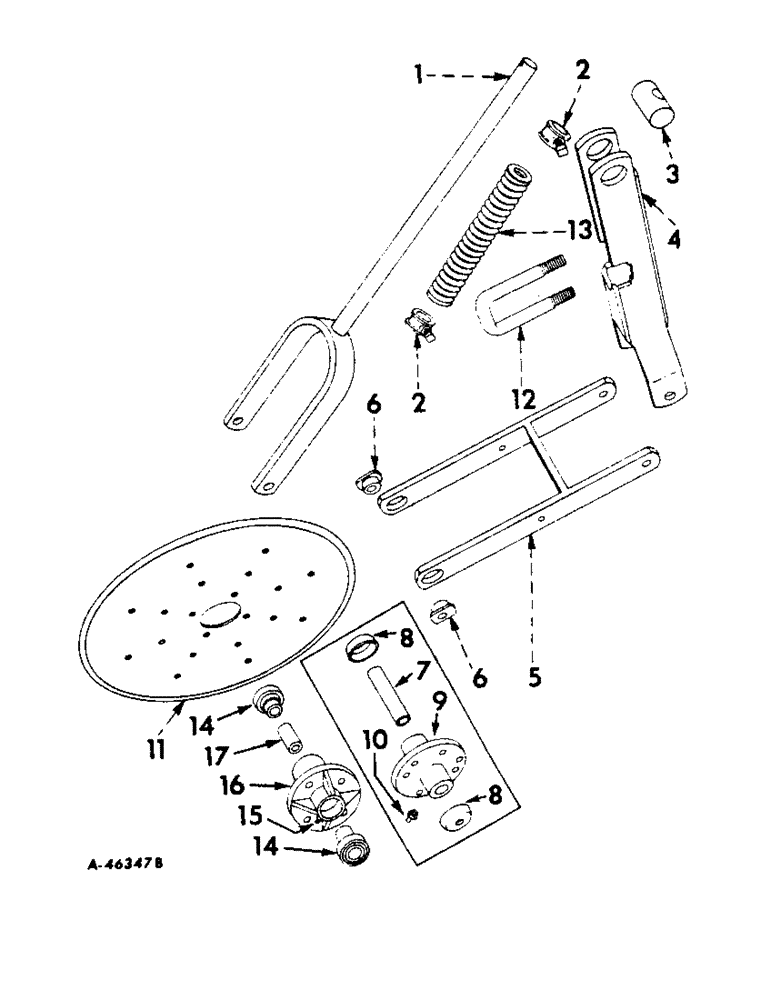

Запчасти Case IH 200 (M-3) - ROLLING GUIDE FIN

1

524333R92

YOKE

ROD W/YOKE, pressure spring, welded assembly

60шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

1

522044R92

ROD, pressure spring (57)

60шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

2

PO2041X

COLLAR

pressure spring rod set

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2 x 5/8 in. cup-pt sq-hd set

1шт.

3

522045R1

SWIVEL, pressure spring rod

1шт.

4

522050R91

ARM, pressure spring rod

56шт.

4

523083R91

ARM, pressure spring rod

57шт.

5

522053R91

ARM, support, welded assembly

56шт.

15058R1

BOLT, 5/8 x 1-3/4 in. mach

2шт.

5

523080R92

SUPPORT

ARM, support

57шт.

17823R1

BOLT, 5/8 x 2 in. C-Z mach

2шт.

608701R1

WASHER

21/32 x 1-1/4 in. x 16 ga C-Z

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 in. C-Z

2шт.

6

522054R1

ECCENTRIC

NUT, eccentric

2шт.

7

521948R1

BUSHING

hub (57)

64шт.

17964R1

BOLT

5/8 x 8 in. mach axle

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 in. C-Z

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

8

521949R1

WASHER

COLLAR, sand (57)

64шт.

9

516564R31

HUB

W/FITTING, (57)

61шт.

9

464744R11

HUB ASSY.

HUB W/FITTING, rolling guide fin (61)

64шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 in.

4шт.

21040R1

HEX SOC SCREW,5/16"-18 x 1 1/4"

5/16 x 1-1/4 in. cap

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

557265R1

WASHER

11/32 x 1 in. x 11 ga

4шт.

10

110161

FITTING, 3/16 in. straight lubrication, drive type (57)

64шт.

11

521950R1

FIN

BLADE, rolling fin (56)

64шт.

11

523084R1

DISC

BLADE, rolling fin (57)

64шт.

11

478436R1

DISC

BLADE, rolling guide fin

64шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 in. C-Z cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

575807R1

WASHER

13/32 x 1 in. x 11 ga

4шт.

12

522041R1

BOLT,U, 3/4" - 10 x 4 3/4"

U-BOLT, pressure spring rod arm

1шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

13

SA2017

SPRING

pressure rod, 1.463 in. OD, 9 in. long, 18 coils

1шт.

14

478434R91

BEARING

ASSEMBLY, ball (64)

2шт.

15

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28NF2 straight lubrication, in hub

64шт.

16

478433R1

HUB

rolling guide fin

64шт.

17

478435R1

SPACER

bearing

64шт.
