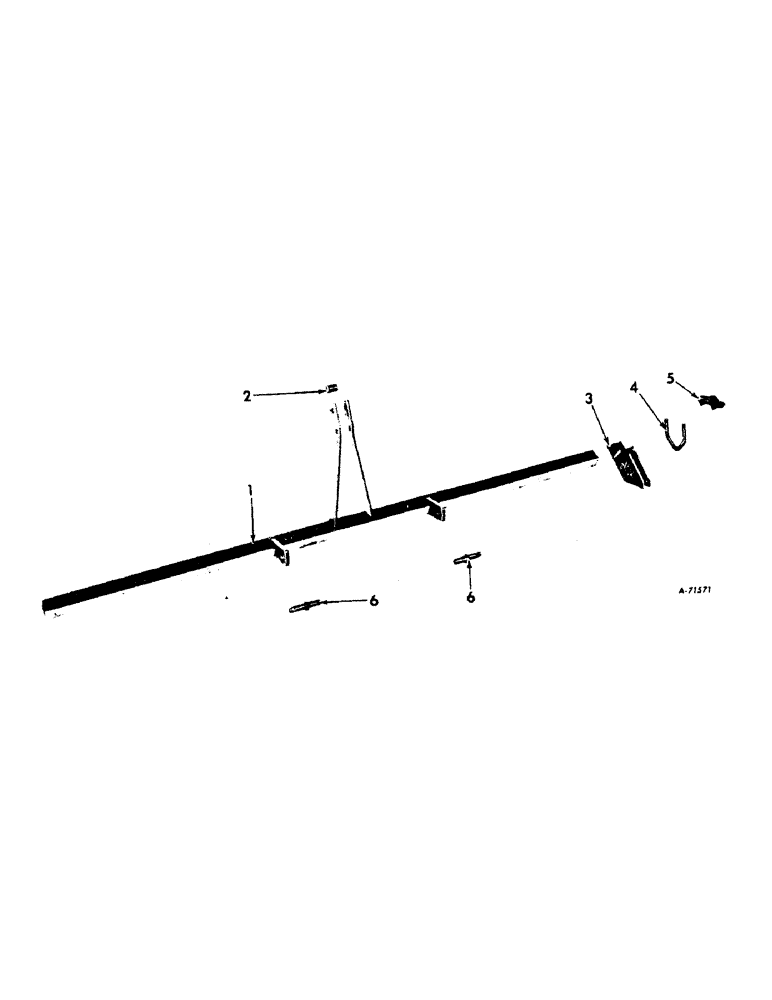

Запчасти Case IH 200 (M-2) - MAIN FRAME

1

479086R91

FRAME ASSY, main, with solid 2-1/4 in. sq tool bar

1шт.

1

467008R91

FRAME ASSY, main, with hollow 2-1/4 in. sq tool bar

1шт.

17701R1

BOLT, 3/4 x 3-3/4 in. mach

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

2

462425R1

SPACER

1шт.

3

467012R92

BRACKET ASSY, attaching

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2 x 2-1/2 in. C-Z cap

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

4

462947R1

BOLT

U-BOLT

4шт.

280954

NUT,3/4"-10, G5

8шт.

5

518859R1

CLAMP

attaching bracket

4шт.

6

525896R1

STUD

lower link

2шт.

426767

NUT,7/8"-14, G5

7/8UNF C-Z

2шт.

131047

WASHER,7/8"

7/8"

2шт.
