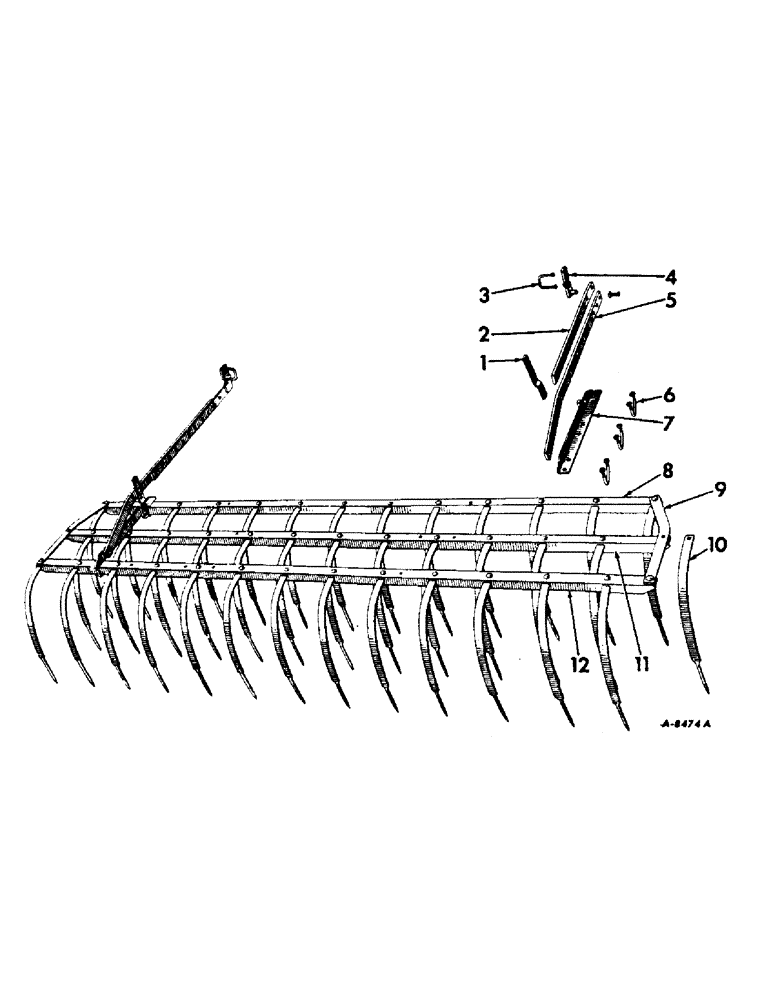

Запчасти Case IH 1AV-144 (L-32) - WEEDER MULCHER, ONE SECTION

1

PO27697

STRAP, hitch leveling

1шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16 x 1 type 1

1шт.

2

PO27698

RAIL, front hitch

1шт.

3

PO17044A

BOLT

U-BOLT, hitch bracket

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

PO27705

BRACKET, hitch

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

5

PO27699

RAIL, left hitch rear

1шт.

5

PO28984

RAIL, right hitch rear

1шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16 x 1-1/4 type 1

4шт.

6

PO27695AX

U-BOLT W/NUTS, attaching angle

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

7

PO27701

ANGLE, hitch

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

2шт.

8

PO27685

ANGLE, front frame, for 7-1/2 ft

1шт.

8

PO28676

ANGLE, front frame, for 10 ft

1шт.

9

PO27684

BRACE, frame angle

1шт.

21860R1

BOLT, 3/8 x 7/8 crg type 1

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 in. crg, 4 used on 7-1/2 ft, 2 used on 10 ft

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 6 used on 7-1/2 ft, 4 used on 10 ft 3/8"

1шт.

10

16448B

SPRING

TOOTH, weeder

1шт.

21860R1

BOLT, 3/8 x 7/8 crg type 1

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

11

PO27686

ANGLE, frame center, for 7-1/2 ft

1шт.

11

PO28677

ANGLE, frame center, 10 ft

1шт.

11

PO28678

ANGLE, frame rear, for 10 ft

1шт.

12

PO28675

BRACE, diagonal, for 10 ft

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
