Запчасти Case IH 1840 (8-08) - LIFT CYLINDER ASSEMBLY, FOLDING FRAME, 8 ROW WIDE AND 8 ROW NARROW

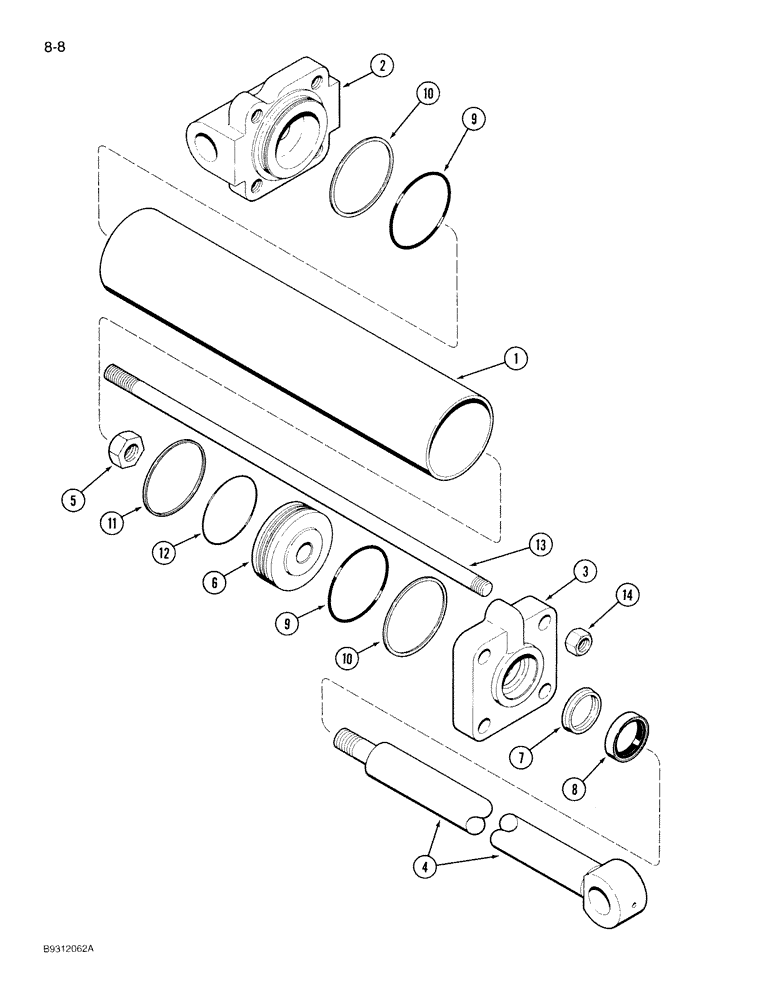

Схема запчастей Case IH 1840 - (8-08) - LIFT CYLINDER ASSEMBLY, FOLDING FRAME, 8 ROW WIDE AND 8 ROW NARROW
14
8
12
5
13
7
11
1
2
6
10
10
9
3
9
4

Артикул

Название

Примечание

Количество

1286369C91

HYDRAULIC CYLINDER,38.02mm Rod, 406.4mm Stroke

CYLINDER ASSEMBLY - lift, 3-1/2 bore x 16 inch stroke

2шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder

1шт.

2

1286370C1

HEAD

- cylinder, closed end

1шт.

3

1286371C1

HEAD

GLAND - cylinder, rod end

1шт.

4

1260810C1

ROD

- piston

1шт.

5

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex lock, 7/8 inch NF, Grade 8

1шт.

6

145422C2

PISTON

- cylinder

1шт.

79978C2

SEAL KIT

KIT - seal

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - 3-1/4 x 3-1/2 inch

2шт.

10

NSS

NOT SOLD SEPARAT

WASHER - backup

2шт.

11

NSS

NOT SOLD SEPARAT

RING - piston seal

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - 3 x 3-1/16 inch

1шт.

13

149879C2

BOLT,5/8" - 11 x 545mm

ROD - tie, cylinder

4шт.

14

25-1010

NUT,5/8"-11, G5

4шт.

Выбрано товаров: 16
