Запчасти Case IH 1840 (8-04) - ASSIST WHEEL HYDRAULICS

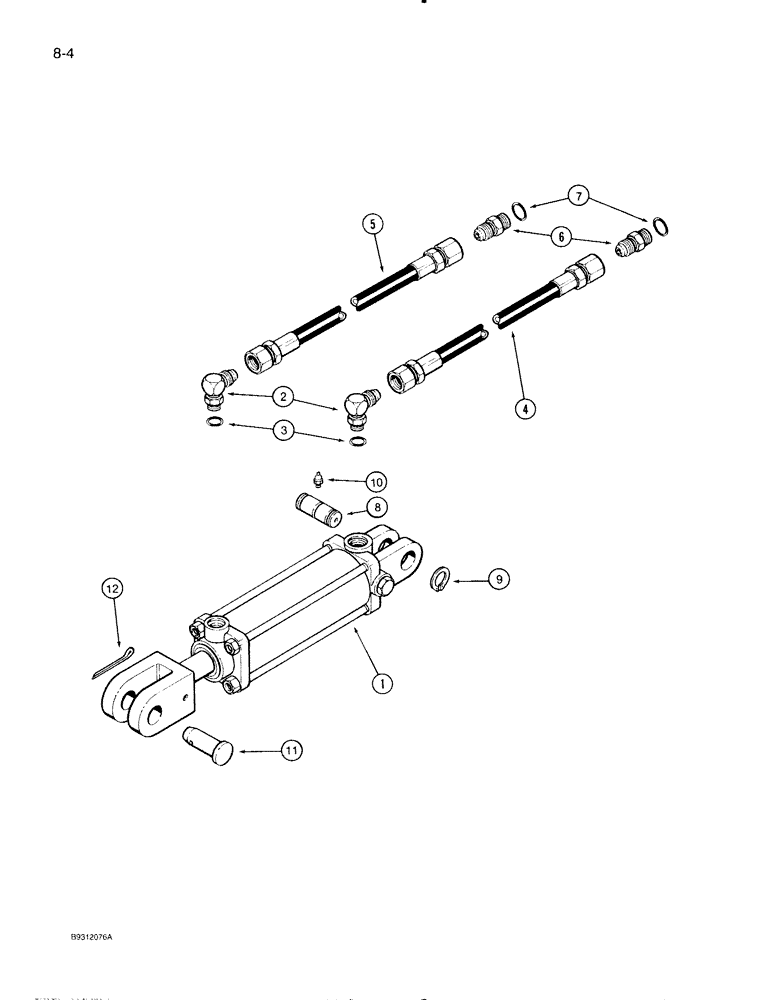

Схема запчастей Case IH 1840 - (8-04) - ASSIST WHEEL HYDRAULICS
1
12
9
2
3
8
7
10
11
5
6
4

Артикул

Название

Примечание

Количество

1

1272145C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - marker lift, 2-1/2 bore x 8 inch stroke, parts list page 8-7

1шт.

2

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

139519C2

HYDRAULIC HOSE

HOSE - hydraulic, 3/8 x 135 inch

1шт.

5

139654C2

HYDRAULIC HOSE

HOSE - hydraulic, 3/8 x 125 inch

1шт.

6

95750C1

HYD CONNECTOR

CONNECTOR - restrictor

2шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

8

131948C1

PIN

- toggle pivot

1шт.

9

100-1698

SNAP RING,#98, Ext

Ring, Snap, #98, Ext

2шт.

10

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

11

810751C1

PIN

- headed, 1 x 3-1/2 inch

1шт.

12

1978738C1

HAIR PIN COTTER

3/16"

1шт.

Выбрано товаров: 12
