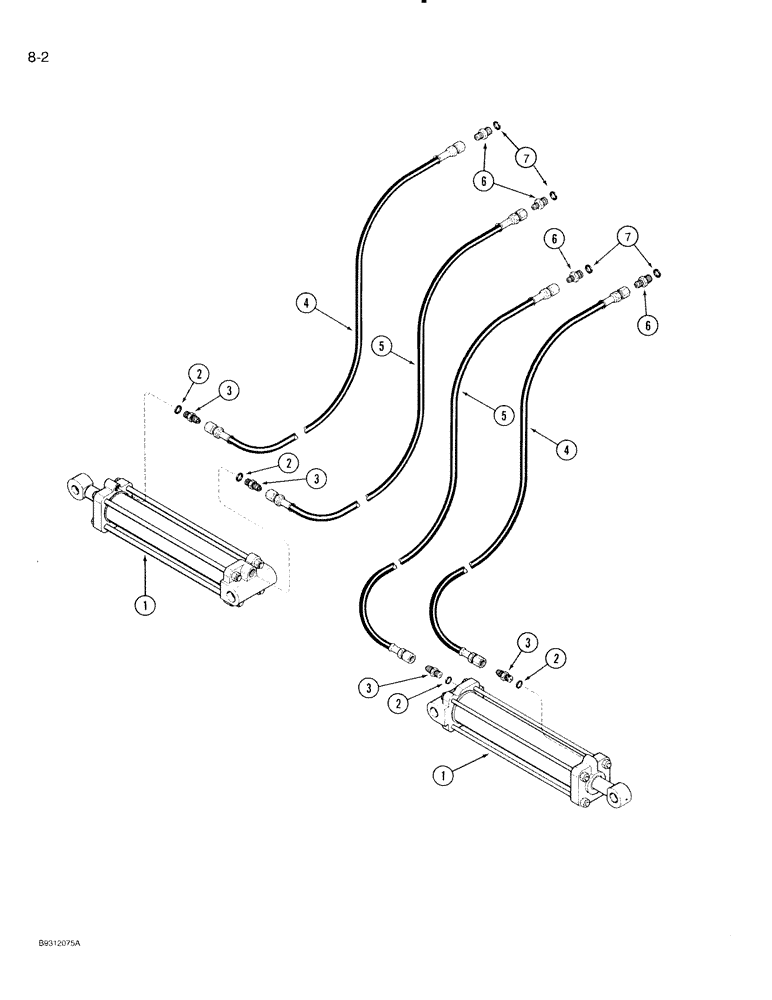

Запчасти Case IH 1840 (8-02) - HYDRAULIC SYSTEM, FOLDING FRAME

1

1286369C91

HYDRAULIC CYLINDER,38.02mm Rod, 406.4mm Stroke

CYLINDER ASSEMBLY - lift, 3-1/2 bore x 16 inch stroke, parts list page 8-9 (8 row wide, 8 row narrow)

2шт.

1

1986595C1

CYLINDER,Double Acting, 38.1mm Rod, 381mm Stroke

ASSEMBLY - lift, 4 inch bore x 16 inch stroke, parts list page 8-11 (12 row narrow)

2шт.

3

95749C1

UNION

CONNECTOR - restrictor

4шт.

4

1277718C1

HYDRAULIC HOSE,6.35 mm ID x 3050.00 mm

6.35 mm ID x 3050.00 mm

2шт.

5

1284291C1

HYDRAULIC HOSE

- hydraulic, 1/4 x 95 inch

2шт.

6

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

4шт.

2

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

4шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
