Запчасти Case IH 1840 (4-2) - WIRING HARNESS AND LAMPS

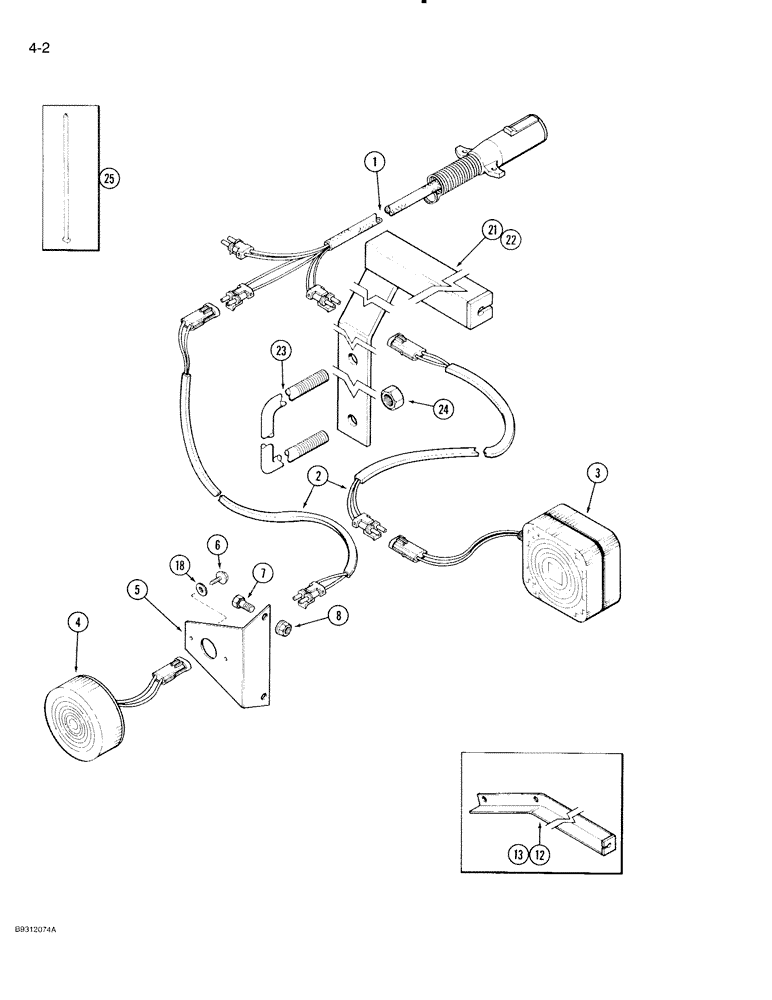

Схема запчастей Case IH 1840 - (4-2) - WIRING HARNESS AND LAMPS
25
24
8
23
5
2
4
21
22
18
13
12
3
6
7
1

Артикул

Название

Примечание

Количество

1

92091C2

HARNESS

- main

1шт.

2

92097C1

HARNESS

- lamp

2шт.

3

91913C91

LIGHT

LAMP ASSEMBLY - warning/turn signal, parts list page 4-5

2шт.

4

91986C91

LIGHT

LAMP ASSEMBLY - tail, parts list page 4-5

1шт.

5

1333942C1

BRACKET

- tail lamp mounting

1шт.

6

280-14510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW - hex washer head tapping, No. 10-16 x 5/8 inch

2шт.

7

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

8

231-5146

FLANGE NUT,3/8"-16

2шт.

12

1333936C2

ANGLE

BRACKET - lamp support, left-hand (Rigid frame)

1шт.

13

1333937C2

ANGLE

BRACKET - lamp support, right-hand (Rigid frame)

1шт.

18

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

21

1333944C2

BRACKET

- lamp, left-hand (Folding frame)

1шт.

22

1333945C3

BRACKET

- lamp, right-hand (Folding frame)

1шт.

23

1250813C1

U-BOLT

- 5/8 inch

2шт.

24

425-1010

NUT,5/8"-11, G5

4шт.

25

306132C1

CABLE TIE,14.5" L

STRAP - tie, nylon, 14 inch

10шт.

Выбрано товаров: 16
