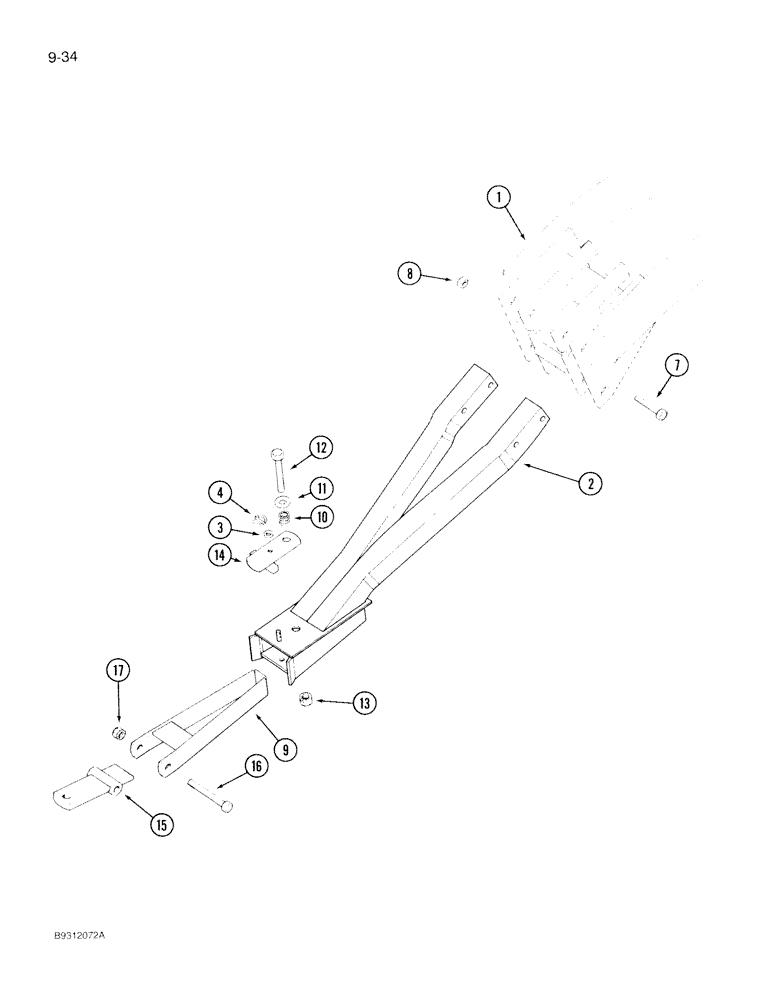

Запчасти Case IH 1840 (9-34) - TANK HITCH, WITHOUT ASSIST WHEEL

1

1976379C1

FRAME

- assist wheel (See Page 9-31)

1шт.

2

1976554C1

SUPPORT

- tank hitch

1шт.

3

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

1шт.

4

A33497

LINCH PIN,4.76mm OD Pin

PIN - retaining, 3/16 inch

1шт.

7

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

4шт.

8

231-42112

NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4 inch NC

4шт.

9

1976399C1

GUIDE

- tongue

1шт.

10

1986194C1

SPRING

- tank hitch

1шт.

11

495-11106

WASHER,1", SAE

- flat, 1-1/16 x 2 x 1/8 inch

1шт.

12

413-16104

BOLT,Hex, 1" - 8 x 6-1/2", Gr 5

- hex, 1 NC x 6-1/2 inch

1шт.

13

23443R1

LOCK NUT,1"-8, GC

NUT - lock, 1 inch

1шт.

14

1976396C1

LATCH

- tank hitch

1шт.

15

1976402C1

TOW BAR

TONGUE - hitch

1шт.

16

413-16112

BOLT,Hex, 1" - 8 x 7", Gr 5

- hex, 1 NC x 7 inch

1шт.

17

23443R1

LOCK NUT,1"-8, GC

NUT - hex, self-locking, 1 inch NC

1шт.
