Запчасти Case IH 1840 (9-30) - ASSIST WHEEL ATTACHMENT

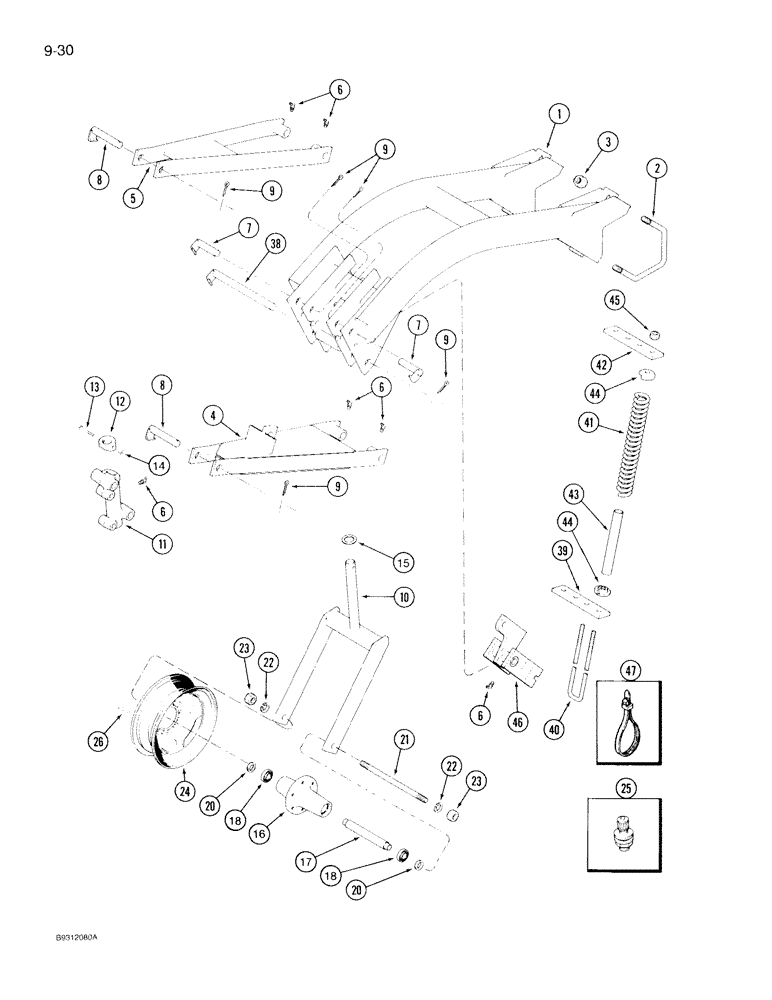

Схема запчастей Case IH 1840 - (9-30) - ASSIST WHEEL ATTACHMENT
18
15
39
44
4
43
14
10
18
41
22
20
16
2
9
25
23
17
20
40
24
38
3
22
46
13
8
9
7
9
23
9
42
12
21
44
6
6
5
47
26
7
6
45
11
6
8
1

Артикул

Название

Примечание

Количество

1

1976379C1

FRAME

- assist wheel

1шт.

2

1976485C1

U-BOLT,1" - 8 x 12.4"

- 1 inch NC

2шт.

3

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

4шт.

4

1980860C1

LINK

- lower

1шт.

5

1980859C1

LINK

- upper

1шт.

6

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

FITTING - grease, 45 degree, 1/4-28 self tap x 13/16 inch

6шт.

7

1969120C1

PIN

- front, upper

2шт.

8

1969147C1

PIN

- rear

2шт.

9

432-2032

COTTER PIN,5/16" x 2"

Pin, Split (Cotter), 5/16" x 2"

5шт.

10

1969108C1

YOKE

- wheel

1шт.

11

1969058C1

CASTING

HOUSING - lift assist wheel

1шт.

12

1969109C1

COLLAR

- locking

1шт.

13

413-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- hex, 3/8 NC x 3-3/4 inch

1шт.

14

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

1шт.

15

462997R1

WASHER

- wear

1шт.

16

541757R1

HUB

- caster wheel

1шт.

17

541758R1

TUBE

SLEEVE - wheel hub

1шт.

18

1973497C1

BALL BEARING,30mm ID x 62mm OD x 24mm W

BEARING - wheel hub

2шт.

20

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

- flat, 1-1/32 x 1-1/2 x 1/16 inch

2шт.

21

541759R2

ROD

- axle

1шт.

22

492-11100

LOCK WASHER,1"

1"

2шт.

23

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

2шт.

24

481344R91

WHEEL

- steel (For 9.5-14 tire)

1шт.

25

810768C1

VALVE

- tubeless tire, steel

1шт.

26

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-5/32 inch

6шт.

38

1980963C1

PIN

- front, lower

1шт.

39

1980939C1

BAR

- spring, lower

1шт.

40

1980962C1

U-BOLT,3/4" - 10 x 36.2", Grade 8

- cushion spring

2шт.

41

91155C1

SPRING

- trip

4шт.

42

1980940C1

BAR

- spring, upper

1шт.

43

91151C1

SPACER

- cushion spring

4шт.

44

91148C1

RETAINER

SEAT - spring, upper

8шт.

45

425-1012

NUT,3/4"-10, G5

4шт.

46

1980942C1

ANCHOR

- cylinder

1шт.

47

306132C1

CABLE TIE,14.5" L

STRAP - tie, nylon, 14 inch

4шт.

Выбрано товаров: 35
