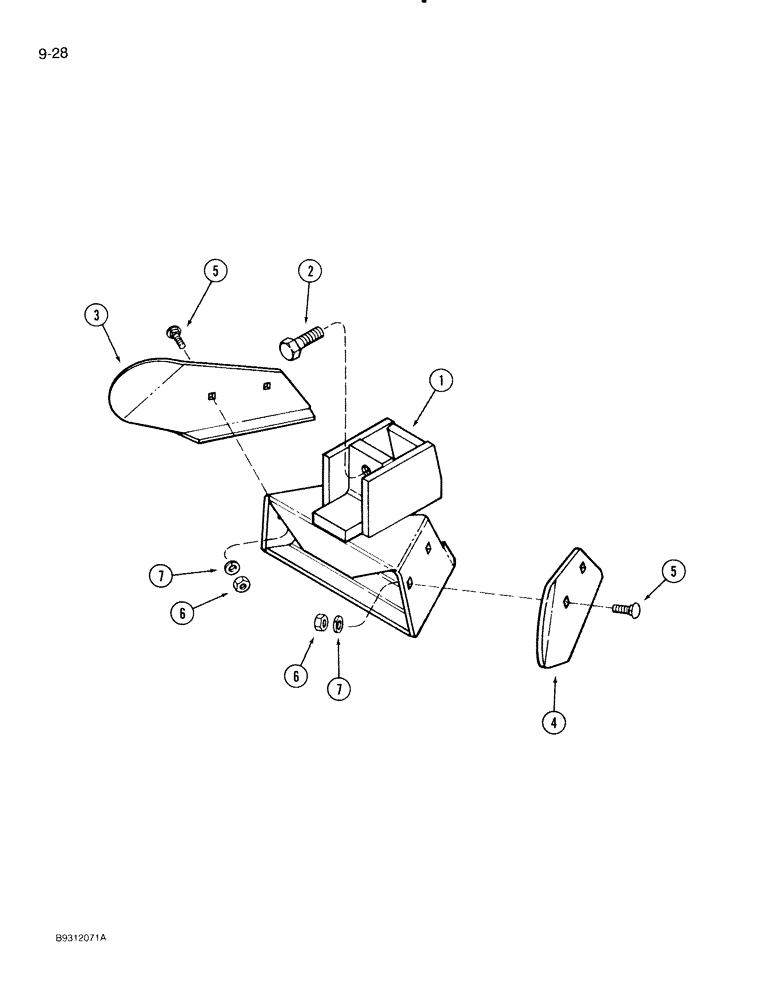

Запчасти Case IH 1840 (9-28) - RIDGE WING ATTACHMENT

1

1958274C1

FROG

- ridge wing

1шт.

2

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

1шт.

3

1958315C1

MOLDBOARD

- left-hand (Narrow row) (Shown)

1шт.

3

1969279C1

MOLDBOARD

- left-hand (Wide row)

1шт.

4

1958316C1

MOLDBOARD

- right-hand (Narrow row) (Shown)

1шт.

4

1969281C1

MOLDBOARD

- right-hand (Wide row)

1шт.

5

434-716

CARRIAGE BOLT,Sht Sq Nk, 7/16" - 14 x 1", Gr 5

BOLT - carriage, 7/16 NC x 1 inch

4шт.

6

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

4шт.

7

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.
