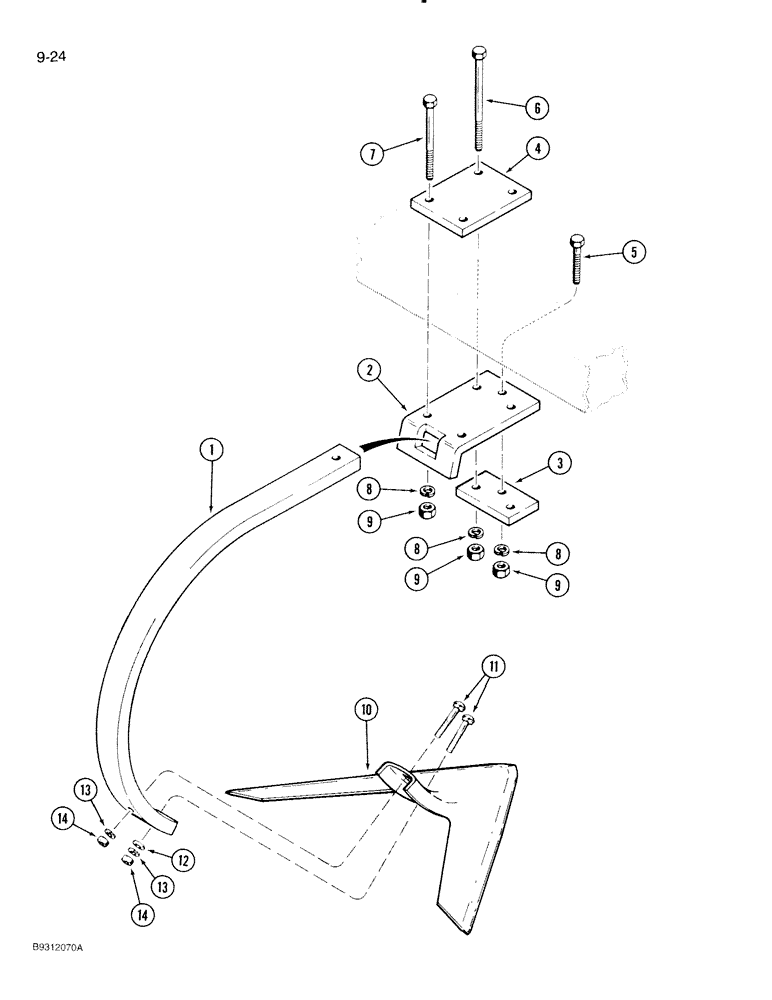

Запчасти Case IH 1840 (9-24) - RIGID CLAMP AND SHANK, 25 INCH CLEARANCE

1

598939R1

FINGER

SHANK - 1 x 2 x 26 inch

1шт.

2

598938R1

BRACKET

- shank clamping

1шт.

3

598937R1

BAR

PLATE - shank clamping

1шт.

4

1284069C1

PLATE

- shank clamping

1шт.

5

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

6

413-10120

BOLT,Hex, 5/8" - 11 x 7-1/2", Gr 5

- hex, 5/8 NC x 7-1/2 inch

2шт.

7

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex, 5/8 NC x 6 inch

2шт.

8

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

9

425-1010

NUT,5/8"-11, G5

5шт.

10

1547109C1

SWEEP

16"

1шт.

10a

1969294C1

SHOVEL

SWEEP - 22 inch (Wide row) (50 degree)

1шт.

10b

220799A1

SWEEP

22 inch, 1/4 thick, 43 degree

1шт.

10c

197511A1

SWEEP

30 inch 1/4" thick, 50 degree

1шт.

11

419-2836

PLOW BOLT,#3, 1/2" - 13 x 2 1/4", Gr 5

BOLT - plow, 1/2 NC x 2-1/4 inch

2шт.

12

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

1шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

14

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.
