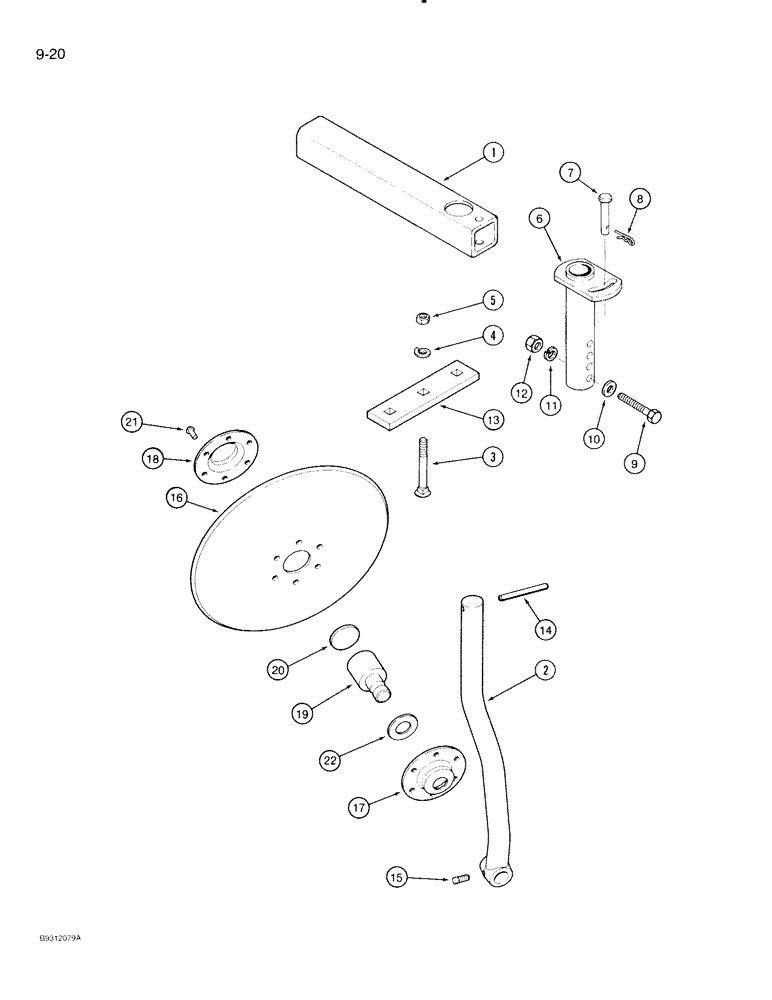

Запчасти Case IH 1840 (9-20) - DISC HILLER, 14 INCH

1

1986355C1

TUBE,434 mm Length

- hiller (Narrow row) (Shown)

2шт.

1

1986356C1

TUBE

- hiller (Wide row)

2шт.

2

1333935C2

SUPPORT ASSY.

STANDARD - disc hiller

2шт.

3

411-864

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 4", Gr 2

BOLT - carriage, 1/2 NC x 4 inch, grade 2

6шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

6

1986352C1

BRACKET

- adjusting

2шт.

7

147404C1

PIN,12.7mm OD x 83mm L

- headed, 1/2 x 3-1/4 inch

2шт.

8

1980543C1

HAIR PIN COTTER

PIN - cotter, hair 5/32 inch diameter

2шт.

9

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

2шт.

10

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

2шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

12

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

13

1333953C1

CLIP

- front

2шт.

14

438-32448

PIN,3/8" x 3", Coiled

2шт.

15

485-13810

SET SCREW,Sq Hd, 3/8"-16 x 5/8"

SCREW - set, square head cup point, 3/8 NC x 5/8 inch

2шт.

97857C1

DISC

ASSEMBLY - hiller, 14 inch

2шт.

16

487298R1

DISC

- 14 inch

1шт.

17

468009R1

RETAINER

FLANGE - open half

1шт.

18

487081R1

COVER

- closed half

1шт.

19

ST686

BALL BEARING,47.63mm OD x 88.09mm L

BEARING - ball, disc

1шт.

20

1344710C1

GASKET

- bearing flange

1шт.

21

104097

RIVET,But Hd, 5/16" x 3/4"

- 5/16 x 3/4 inch button head

6шт.

22

15163E

WASHER,1.03" ID x 2" OD x 0.125" Thk

- felt, 1-1/32 x 2 x 1/8 inch

2шт.
