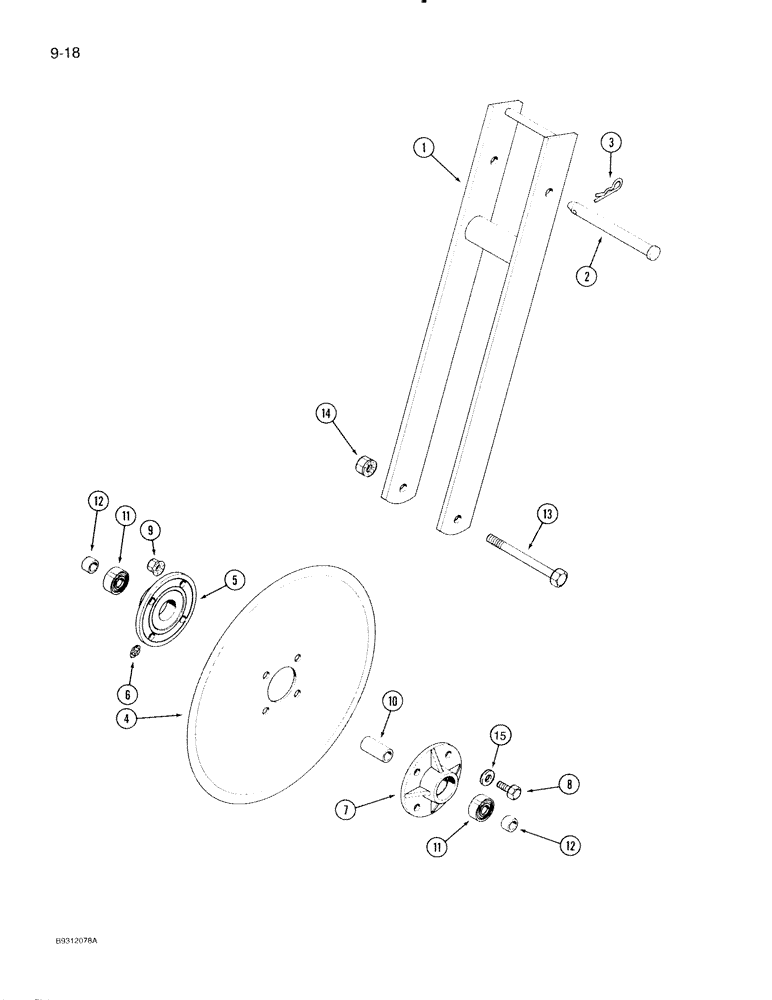

Запчасти Case IH 1840 (9-18) - ROLLING COULTER

1

1263778C1

FRAME

- coulter

1шт.

2

1334004C1

PIN

- pointed

1шт.

3

1978738C1

HAIR PIN COTTER

3/16"

1шт.

4

141205C2

DISC

BLADE - guide fin

1шт.

5

1264470C1

HUB

- guide fin

1шт.

6

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4 NF x 1/2 inch

1шт.

7

1264470C1

HUB

- guide fin

1шт.

8

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, Grade 8

4шт.

9

232-5318

FLANGE NUT,Flg, 1/2"-13

NUT - hex flange lock, 1/2 inch NC

4шт.

10

141369C2

SPACER

- guide fin

1шт.

11

1277585C91

BALL BEARING,16.03mm ID x 45.23mm OD x 18.69mm W

BEARING - ball

2шт.

12

149510C1

SPACER

- hub

2шт.

13

413-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

- hex, 5/8 NC x 6-1/2 inch

1шт.

14

230-42110

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8 NC

1шт.

15

495-81021

WASHER,17/32" x 1" x .120"

- flat, 17/32 x 1 x 7/64 inch

4шт.
