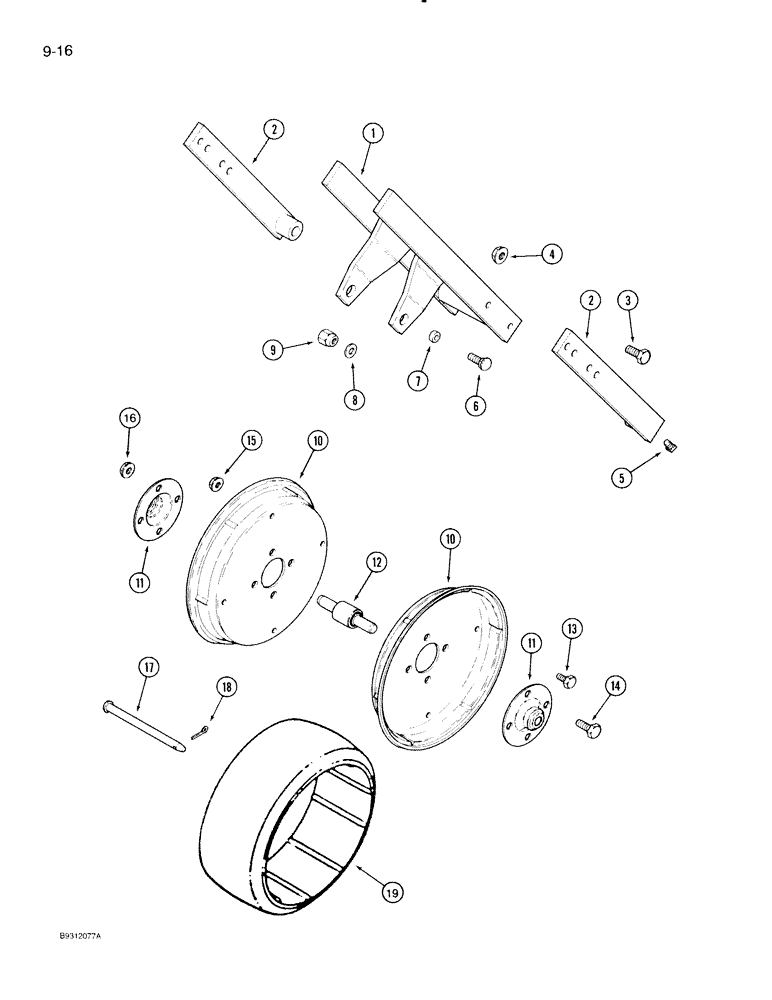

Запчасти Case IH 1840 (9-16) - GAUGE WHEEL

1

1263781C1

FRAME

- gauge wheel

1шт.

2

1263783C1

BAR ASSY.

BAR - wheel support

2шт.

3

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

4

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

5

485-1388

SET SCREW,Sq Hd, 3/8"-16 x 1/2"

SCREW - set, square head, cup point, 3/8 x 1/2 inch

2шт.

6

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1-1/2 inch

2шт.

7

137512C2

BUSHING

- link pivot

2шт.

8

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch

2шт.

9

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

10

1976544C1

WHEEL

RIM - gauge wheel clincher

2шт.

11

1976545C1

HOUSING

- bearing

2шт.

12

1334000C1

BALL BEARING,38.1mm OD x 149.25mm L

- ball

1шт.

13

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

14

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

15

231-5146

FLANGE NUT,3/8"-16

4шт.

16

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

17

1334004C1

PIN

- pointed

1шт.

18

1978738C1

HAIR PIN COTTER

3/16"

1шт.

19

1334026C1

TYRE/TIRE

TIRE - clincher, 4 x 16

1шт.
