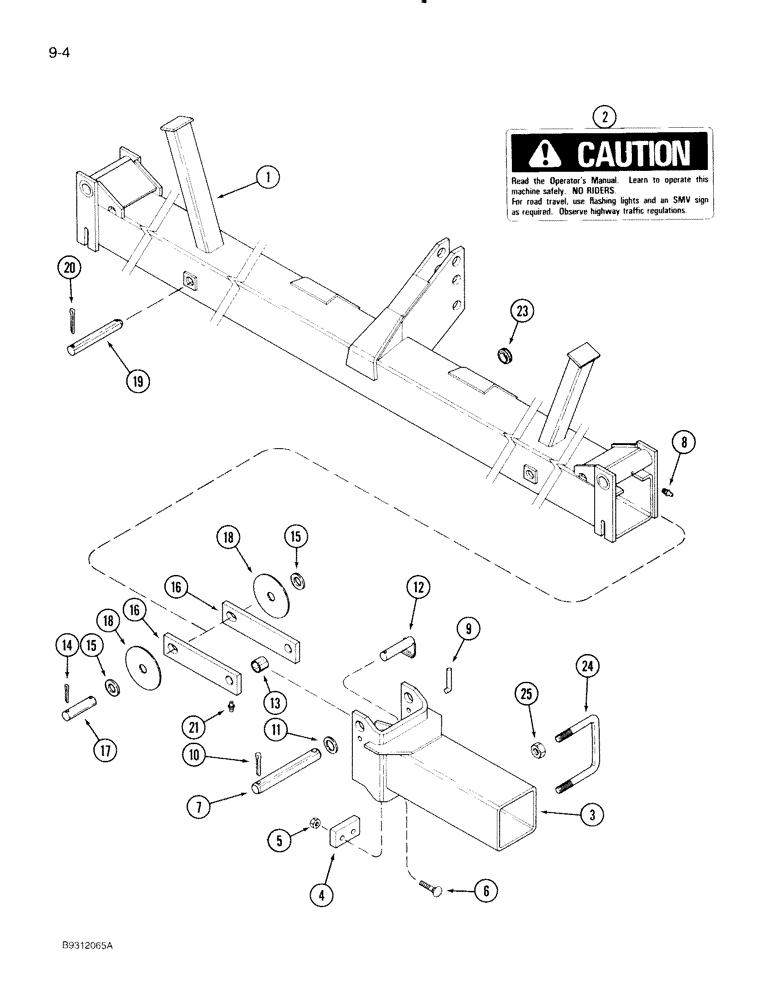

Запчасти Case IH 1840 (9-04) - MAIN FRAME, FOLDING

1

1980718C1

FRAME

ASSEMBLY - main (8 row narrow) (Includes Ref. 2)

1шт.

1

1980719C1

FRAME

ASSEMBLY - main (8 row wide) (Includes Ref. 2)

1шт.

1

1980720C1

FRAME

ASSEMBLY - main (12 row narrow)

1шт.

2

1254170C1

DECAL

- Caution, no riders

1шт.

3

1969271C1

FRAME

- wing (8 row narrow)

1шт.

3

1960624C1

FRAME

- wing (8 row wide)

1шт.

3

1334195C1

FRAME

- wing (12 row narrow)

1шт.

4

1344857C1

BLOCK

- stop

2шт.

5

230-42110

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8 NC

4шт.

6

433-1048

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3", Gr 5

BOLT - carriage, 5/8 NC x 3 inch

4шт.

7

144892C1

PIN,38.1mm OD x 290.5mm L

- frame hinge

2шт.

8

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 9/16 inch

4шт.

9

149507C1

BAR

PIN - pivot lock

2шт.

10

432-3232

COTTER PIN,1/2" x 2"

Pin, Split (Cotter), 1/2" x 2"

2шт.

11

495-81223

WASHER,1 17/32" x 2 1/4" x .060"

- flat, 1-17/32 x 2-1/4 x 3/64 inch

1шт.

12

1969120C1

PIN

- wing link

2шт.

13

1985951C1

SPACER

- wing link

2шт.

14

432-2032

COTTER PIN,5/16" x 2"

Pin, Split (Cotter), 5/16" x 2"

6шт.

15

495-81203

WASHER,1 9/32" x 2" x .120"

- flat, 1-9/32 x 2 x 7/64 inch

1шт.

16

1980724C1

BAR

- wing link

4шт.

17

1985949C1

PIN,31.7mm OD x 124mm L

- cylinder and wing link

2шт.

18

1334194C1

ROLLER

- cylinder support

4шт.

19

145174C1

PIN,31.75mm OD x 228mm L

- cylinder anchor

2шт.

20

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

4шт.

21

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 17/32"

4шт.

23

100247C1

GROMMET

- frame

4шт.

24

147451C2

U-BOLT,3/4" - 10 x 217.45mm

- 3/4 inch NC

1шт.

25

425-1012

NUT,3/4"-10, G5

1шт.
