(8-08) - LIFT CYLINDER ASSEMBLY, FOLDING FRAME, 8 ROW WIDE AND 8 ROW NARROW 3.5 ID X 16 INCH STROKE

Запчасти Case IH 184 (8-08) - LIFT CYLINDER ASSEMBLY, FOLDING FRAME, 8 ROW WIDE AND 8 ROW NARROW 3.5 ID X 16 INCH STROKE

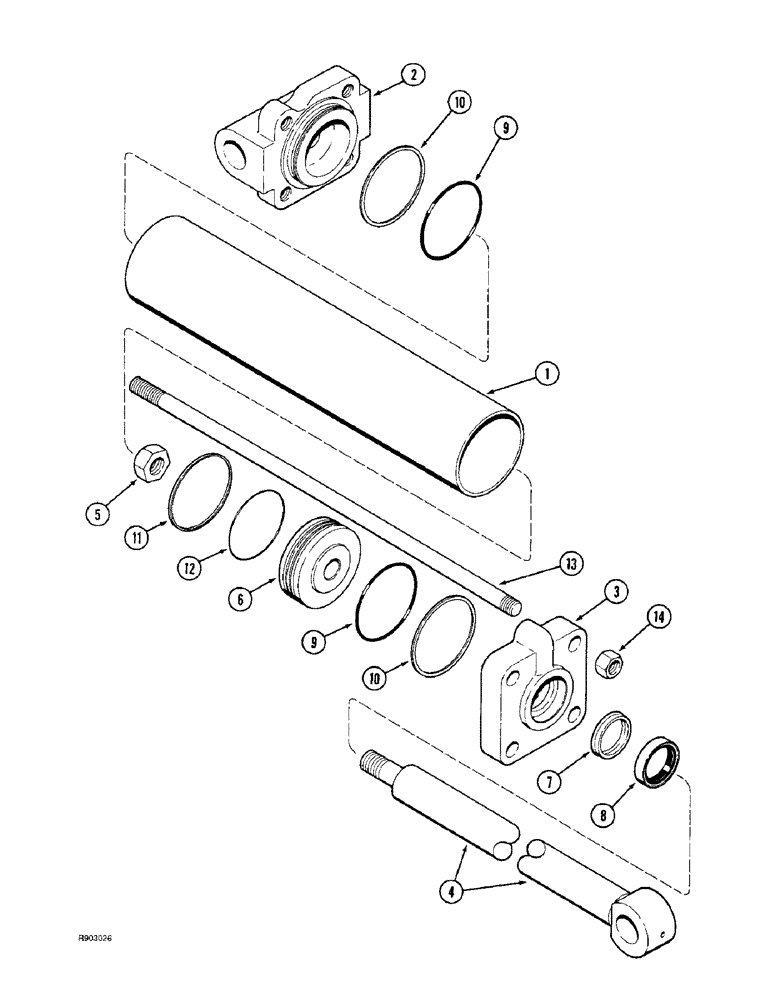

Схема запчастей Case IH 184 - (8-08) - LIFT CYLINDER ASSEMBLY, FOLDING FRAME, 8 ROW WIDE AND 8 ROW NARROW 3.5 ID X 16 INCH STROKE
2
10
14
3
12
5
10
9
7
9
4
1
8
13
11
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1286369C91

HYDRAULIC CYLINDER,38.02mm Rod, 406.4mm Stroke

CYLINDER ASSEMBLY - lift, 3-1/2 ID x 16 inch stroke

2шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder

1шт.

2

1286370C1

HEAD

- cylinder

1шт.

3

1286371C1

HEAD

GLAND - cylinder

1шт.

4

1260810C1

ROD

- piston

1шт.

5

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

6

145422C2

PISTON

- cylinder

1шт.

79978C2

SEAL KIT

KIT - seal

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - 3-1/4 x 3-1/2 inch

2шт.

10

NSS

NOT SOLD SEPARAT

WASHER - backup

2шт.

11

NSS

NOT SOLD SEPARAT

RING - piston seal

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - 3 x 3-1/16 inch

1шт.

13

149879C2

BOLT,5/8" - 11 x 545mm

- cylinder retaining

4шт.

14

25-1010

NUT,5/8"-11, G5

4шт.
