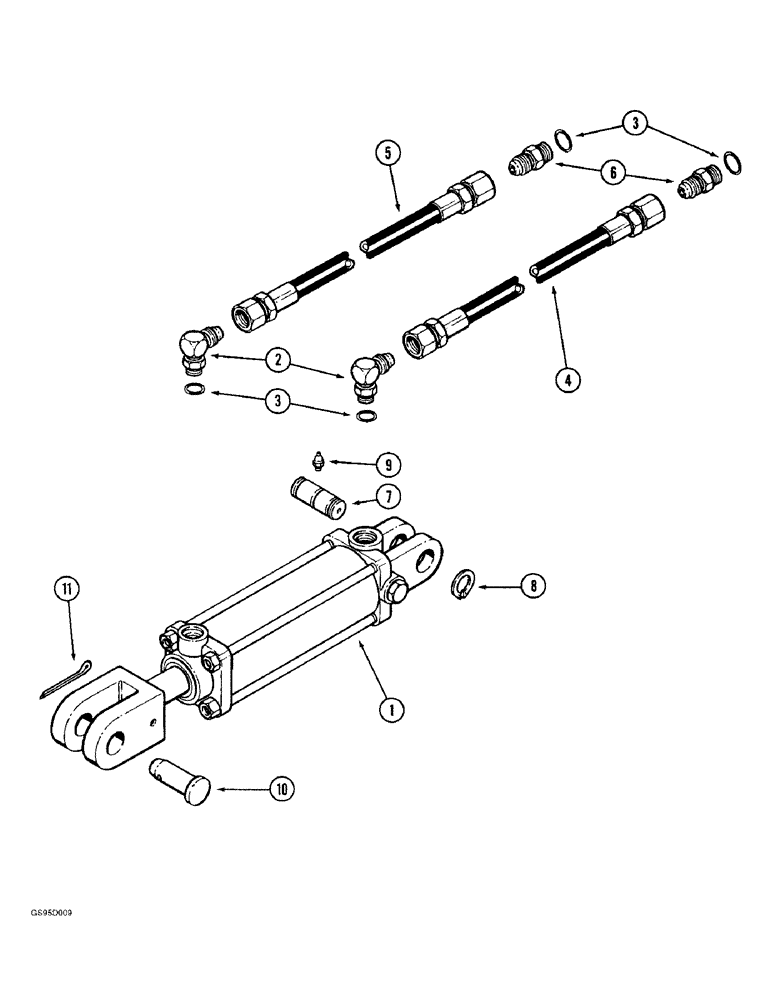

Запчасти Case IH 184 (8-04) - ASSIST WHEEL HYDRAULICS

1

1272145C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - lift, parts list page 8-6

1шт.

2

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

4шт.

4

139519C2

HYDRAULIC HOSE

HOSE - 3/8 x 135 inch (3429 MM) long, closed end of cylinder

1шт.

5

139654C2

HYDRAULIC HOSE

HOSE - 3/8 x 125 inch (3175 MM) long, rod end of cylinder

1шт.

6

95750C1

HYD CONNECTOR

CONNECTOR - restrictor

2шт.

7

131948C2

PIN

- pivot

1шт.

8

100-1698

SNAP RING,#98, Ext

Ring, Snap, #98, Ext

2шт.

9

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

10

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - headed, 1 x 3-1/4 inch

1шт.

11

1970957C1

SPRING

PIN - cotter, 3/16 inch diameter

1шт.
