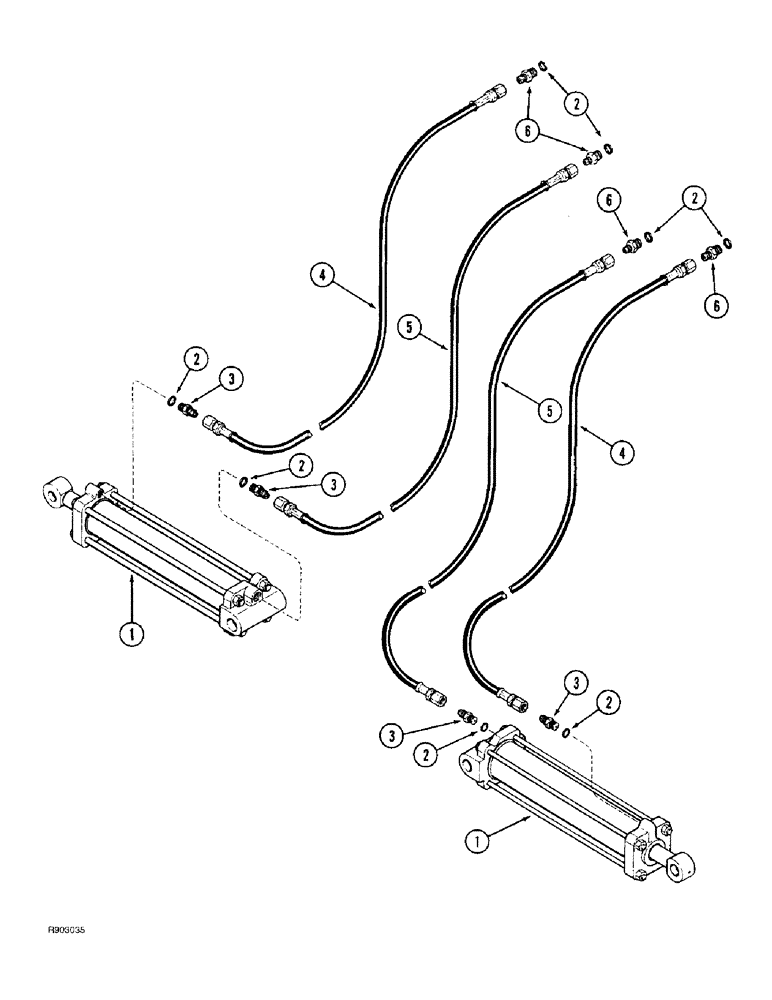

Запчасти Case IH 184 (8-02) - LIFT HYDRAULICS - FOLDING FRAME

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift, see pages 8-8 or 8-10 for correct assembly and components

2шт.

3

95749C1

UNION

CONNECTOR - restrictor

4шт.

4

1301350C2

HYDRAULIC HOSE

HOSE - 3/8 x 120 inch long, rod end of cylinder, if used

2шт.

4

1277718C1

HYDRAULIC HOSE,6.35 mm ID x 3050.00 mm

- Rod end of cylinder, if used 6.35 mm ID x 3050.00 mm

2шт.

5

1284367C1

HYDRAULIC HOSE,9.53mm ID x 2415mm L

HOSE - 3/8 x 95 inch (2415 MM) long, closed end of cylinder, if used

2шт.

5

1284291C1

HYDRAULIC HOSE

- 1/4 x 95 inch (2415 MM) long, closed end of cylinder, if used

2шт.

6

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

4шт.

2

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

8шт.
