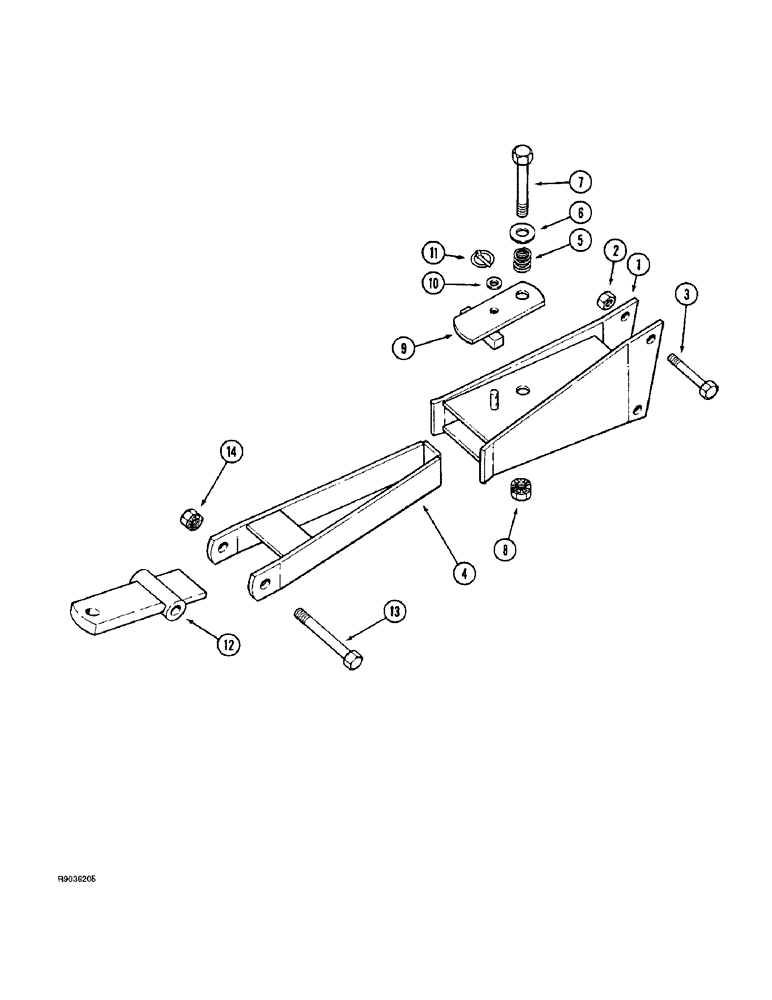

Запчасти Case IH 184 (9-32) - TANK HITCH, WITH ASSIST WHEEL

1

1976393C1

SUPPORT

- tank hitch

1шт.

2

425-1012

NUT,3/4"-10, G5

2шт.

3

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

- hex, 3/4 NC x 4-1/2 inch

2шт.

4

1976399C1

GUIDE

- tongue

1шт.

5

1986194C1

SPRING

- tank hitch

1шт.

6

495-11106

WASHER,1", SAE

- flat, 1-1/16 x 2 x 1/8 inch

1шт.

7

413-16104

BOLT,Hex, 1" - 8 x 6-1/2", Gr 5

- hex, 1 NC x 6-1/2 inch

1шт.

8

23443R1

LOCK NUT,1"-8, GC

NUT - hex, 1 inch NC

1шт.

9

1976396C1

LATCH

- tank hitch

1шт.

10

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64"), Hardened, If used 1/2", SAE

1шт.

10

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened, If used

1шт.

11

A33497

LINCH PIN,4.76mm OD Pin

PIN - snap lock

1шт.

12

1976402C1

TOW BAR

TONGUE - hitch

1шт.

13

413-16112

BOLT,Hex, 1" - 8 x 7", Gr 5

- hex, 1 NC x 7 inch

1шт.

14

23443R1

LOCK NUT,1"-8, GC

NUT - hex, 1 inch NC

1шт.
