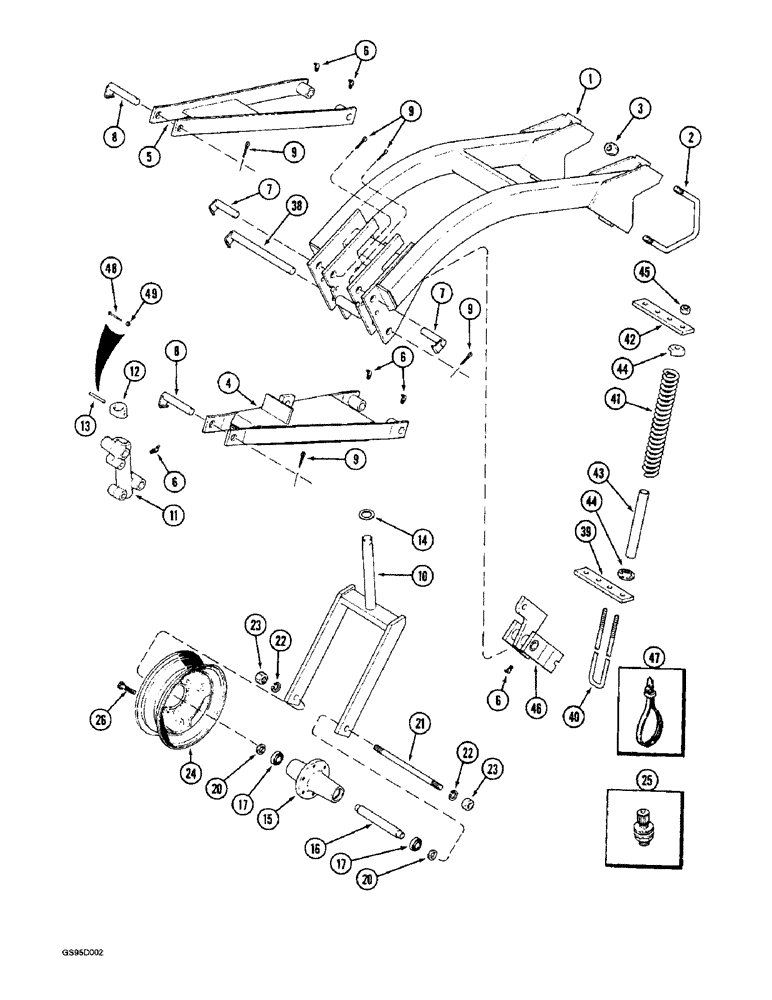

Запчасти Case IH 184 (9-30) - ASSIST WHEEL ATTACHMENT
№
Артикул
Название
Примечание
Количество
1
1976379C1
FRAME
- assist wheel
1шт.
2
1976485C1
U-BOLT,1" - 8 x 12.4"
- 1 inch NC
2шт.
3
425-1016
NUT,1"-8, G5
- hex, 1 inch NC
4шт.
4
1980860C1
LINK
- lower
1шт.
5
1980859C1
LINK
- upper
1шт.
6
219-90
LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF
FITTING - grease, 45 degree, 1/4-28 special taper x 13/16 inch
6шт.
7
1969120C1
PIN
- wing link
2шт.
8
1969147C1
PIN
- rear
2шт.
9
32-2032
COTTER PIN,5/16" x 2"
PIN, SPLIT (COTTER), 5/16" x 2"
5шт.
10
1969108C1
YOKE
- wheel
1шт.
11
1969058C1
CASTING
SLEEVE - lift assist wheel
1шт.
12
1969109C1
COLLAR
- locking
1шт.
13
21497R1
PIN,3/8" x 3 1/2", Coiled
no longer used, replace with items 48 and 49 3/8" x 3 1/2", Coiled
1шт.
14
462997R1
WASHER
- wear
1шт.
15
541757R1
HUB
- wheel
1шт.
16
541758R1
TUBE
SLEEVE - wheel hub
1шт.
17
1973497C1
BALL BEARING,30mm ID x 62mm OD x 24mm W
BEARING - wheel hub
2шт.
20
495-81069
WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk
- flat, 1-1/32 x 1-1/2 x 1/16 inch
2шт.
21
541759R2
ROD
- axle
1шт.
22
492-11100
LOCK WASHER,1"
1"
2шт.
23
425-1016
NUT,1"-8, G5
- hex, 1 inch NC
2шт.
24
481344R91
WHEEL
- drive, 9.5L x 14 inch tire (For 9.5-14 tire)
1шт.
25
810768C1
VALVE
- inflation, steel
1шт.
26
549962R1
BOLT,1 1/2" - 20 x 1 1/2", Class 3
- hex conical, 1/2 NF x 1-5/32 inch
6шт.
38
1980963C1
PIN
- front, lower
1шт.
39
1980939C1
BAR
- spring, lower
1шт.
40
1980962C1
U-BOLT,3/4" - 10 x 36.2", Grade 8
- cushion spring
2шт.
41
91155C1
SPRING
- trip
4шт.
42
1980940C1
BAR
- spring, upper
1шт.
43
91151C1
SPACER
- cushion spring
4шт.
44
91148C1
RETAINER
SEAT - spring
8шт.
45
425-1012
NUT,3/4"-10, G5
4шт.
46
1980942C1
ANCHOR
- cylinder
1шт.
47
306132C1
CABLE TIE,14.5" L
STRAP - tie, 14 inch, nylon
4шт.
48
413-660
BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5
- hex, 3/8 NC x 3-3/4 inch
1шт.
49
231-4116
NUT,3/8"-16, GB
NUT - hex, self locking, 3/8 inch NC
1шт.
Выбрано товаров: 36
