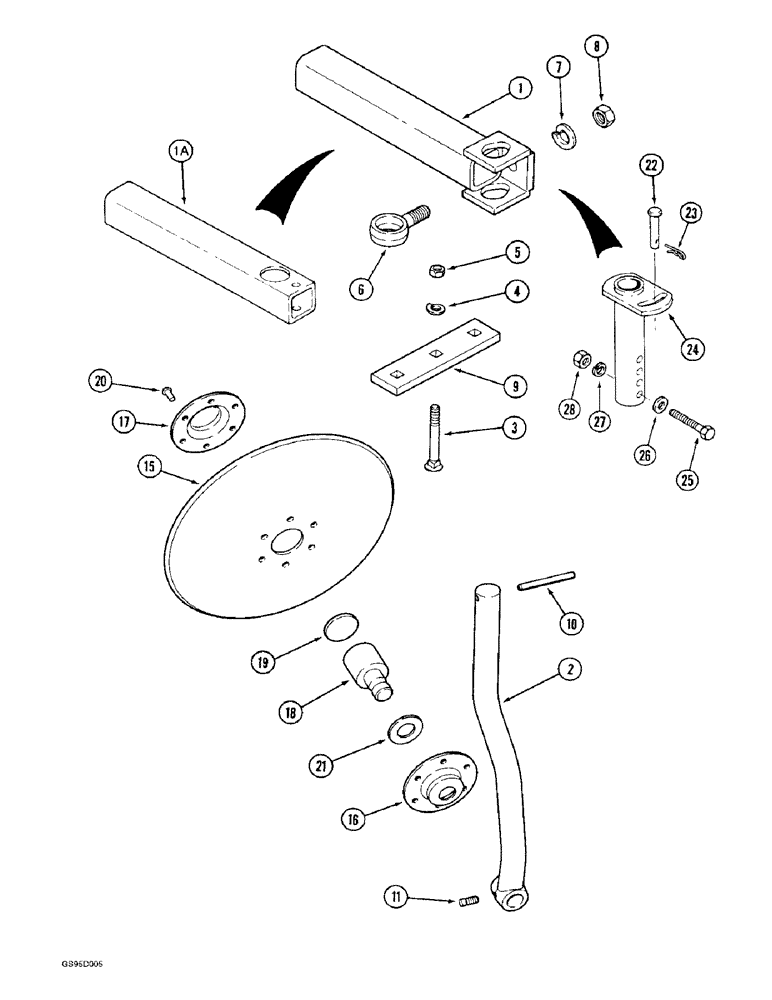

Запчасти Case IH 184 (9-20) - DISC HILLER, 14 INCH

1

1333932C1

TUBE

- hiller (Narrow row), if used

2шт.

1a

1986355C1

TUBE,434 mm Length

- hiller (Narrow row), if used

2шт.

1

1973037C1

TUBE

- hiller (Wide row), if used

2шт.

1a

1986356C1

TUBE

- hiller (Wide row), if used

2шт.

2

1333935C1

SUPPORT ASSY.

STANDARD - disc hiller

2шт.

3

411-864

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 4", Gr 2

BOLT - carriage, 1/2 NC x 4 inch, grade 2

6шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

6

1334027C1

BOLT,3/4" - 10 x 70mm

BOLT - eye, 3/4 inch, if used

2шт.

7

492-11075

LOCK WASHER,3/4"

if used 3/4"

2шт.

8

425-1012

NUT,3/4"-10, G5

If used 3/4"-10, G5

2шт.

9

1333953C1

CLIP

- front

2шт.

10

438-12452

LOCK PIN,3/8" x 3 1/4", Slotted

Pin, 3/8" x 3 1/4", Slotted

2шт.

11

485-13810

SET SCREW,Sq Hd, 3/8"-16 x 5/8"

SCREW - set, square head cup point, 3/8 NC x 5/8 inch

2шт.

97857C1

DISC

ASSEMBLY - hiller, 14 inch

2шт.

15

487298R1

DISC

- 14 inch

1шт.

16

468009R1

RETAINER

HOUSING - bearing

1шт.

17

487081R1

COVER

HOUSING - bearing, bearing shaft end

1шт.

18

ST686

BALL BEARING,47.63mm OD x 88.09mm L

BEARING - ball

1шт.

19

1344710C1

GASKET

- bearing flange

1шт.

20

147-307

RIVET

- button head, 5/16 x 3/4 inch

6шт.

21

15163E

WASHER,1.03" ID x 2" OD x 0.125" Thk

- felt, 1-1/32 x 2 x 1/8 inch

2шт.

22

147404C1

PIN,12.7mm OD x 83mm L

- headed, 1/2 x 3-1/4 inch, if used

2шт.

23

1980543C1

HAIR PIN COTTER

PIN - hair, 5/32 inch diameter, if used

2шт.

24

1986352C1

BRACKET

- adjusting, if used

2шт.

25

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

if used Hex, 1/2"-13 x 3 3/4", G5

2шт.

26

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64"), If used 1/2", SAE

2шт.

27

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , If used 1/2"

2шт.

28

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, if used 1/2"-13, G5

2шт.
