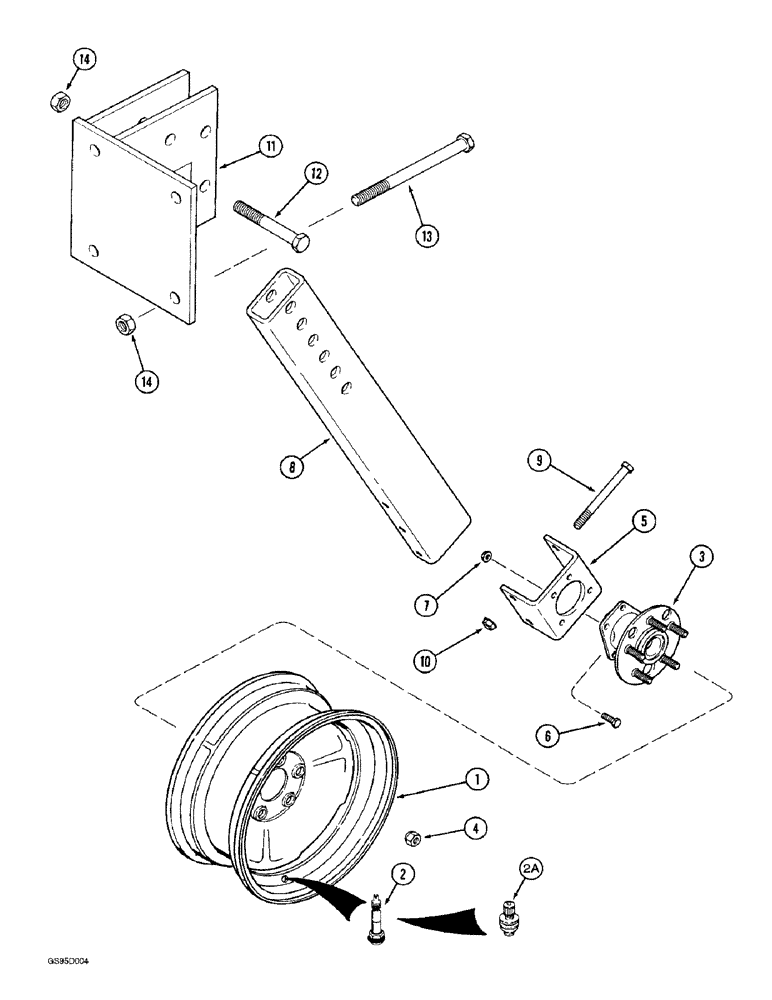

Запчасти Case IH 184 (9-10) - CARRYING WHEEL

1

141276C1

WHEEL

- carrying, 13 inch

1шт.

2

387841R91

VALVE

- wheel, if used

1шт.

2a

810768C1

VALVE

- inflation, steel, if used

1шт.

3

141298C91

HUB

SPINDLE - carrying wheel bearing

1шт.

4

149254C1

WHEEL NUT

- spindle stud retaining, 12 MM - 1.50

5шт.

5

141294C1

PLATE

- spindle bearing mounting

1шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

7

231-5146

FLANGE NUT,3/8"-16

4шт.

8

141293C1

TUBE,758.5 mm Length

- carrying wheel

1шт.

9

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

- hex, 1/2 NC x 5 inch

2шт.

10

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

11

1960578C1

BRACKET

- carrying wheel

1шт.

12

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x 4 inch

2шт.

13

426-12144

BOLT,Hex, 3/4" - 10 x 9", Gr 8

- hex, 3/4 NC x 9 inch, grade 8

2шт.

14

230-42112

LOCK NUT,3/4"-10, GA

NUT - hex, self-locking, 3/4 inch NC

4шт.
