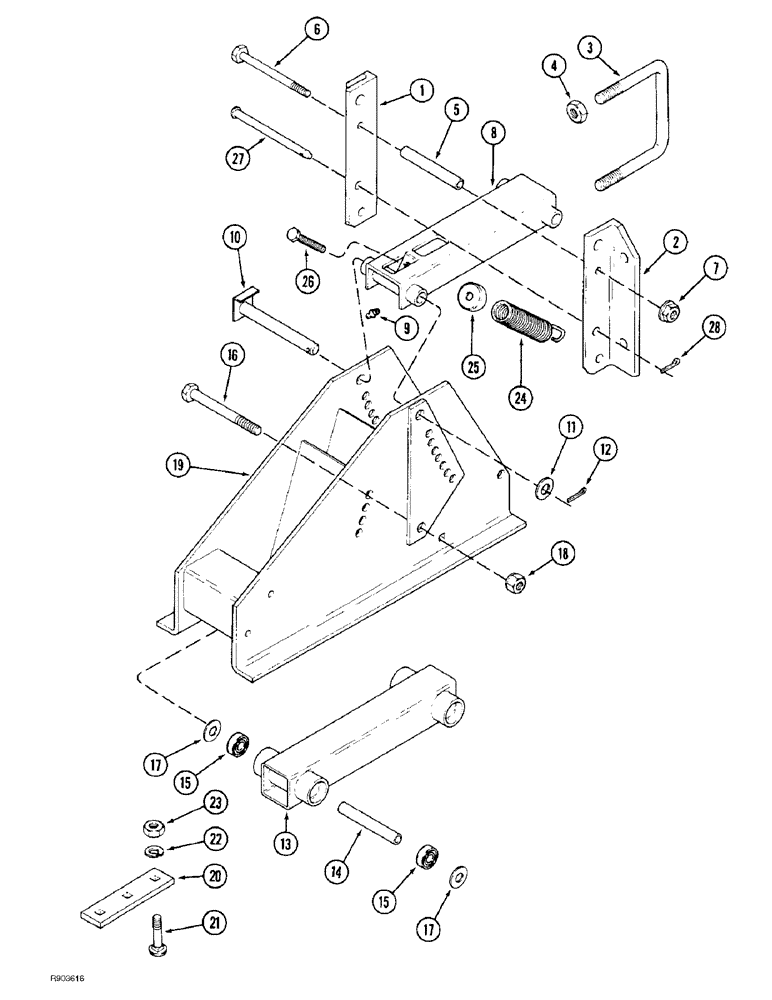

Запчасти Case IH 184 (9-06) - PARALLEL LINKAGE

1

1263657C1

BRACKET

- angle, left-hand

1шт.

2

1263658C1

BRACKET

- angle, right-hand

1шт.

3

147451C2

U-BOLT,3/4" - 10 x 217.45mm

- 3/4 inch NC

2шт.

4

425-1012

NUT,3/4"-10, G5

4шт.

5

1263659C1

TUBE,21.34 mm OD, 153 mm Length

- spacer

1шт.

6

413-8128

BOLT,Hex, 1/2" - 13 x 8", Gr 5

- hex, 1/2 NC x 8 inch

1шт.

7

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

8

1263760C1

LINK ASSY.

LINK - upper

1шт.

9

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

10

1263775C1

PIN ASSY.

PIN - upper link

2шт.

11

495-81058

WASHER,29/32" x 1 1/2" x .179"

- flat, 29/32 x 1-1/2 x 11/64 inch

1шт.

12

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

13

1263763C1

LINK ASSY.

LINK - lower

1шт.

14

1263766C1

TUBE,19.8 mm ID, 28.6 mm OD

- spacer

2шт.

15

T39594

BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"

BEARING - parallel linkage

4шт.

16

413-12128

BOLT,Hex, 3/4" - 10 x 8", Gr 5

- hex, 3/4 NC x 8 inch

2шт.

17

495-11081

WASHER,3/4", SAE

4шт.

18

9413962

LOCK NUT,3/4"-10, GB

NUT - hex lock, 3/4 inch NC

2шт.

19

1263767C1

FRAME

- linkage

1шт.

20

1333953C1

CLIP

- front (Used on outer linkage with hillers only)

2шт.

21

411-864

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 4", Gr 2

BOLT - carriage, 1/2 NC x 4 inch, grade 2

2шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

23

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

24

136183C1

SPRING

- down pressure

1шт.

25

M1425

PLUG

- spring

1шт.

26

149439C1

SPECIAL BOLT,Spcl, Hex, 1/2" - 13 x 4.25", Gr 5

BOLT - hex special

1шт.

27

1334004C1

PIN

- pointed

1шт.

28

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

1шт.
