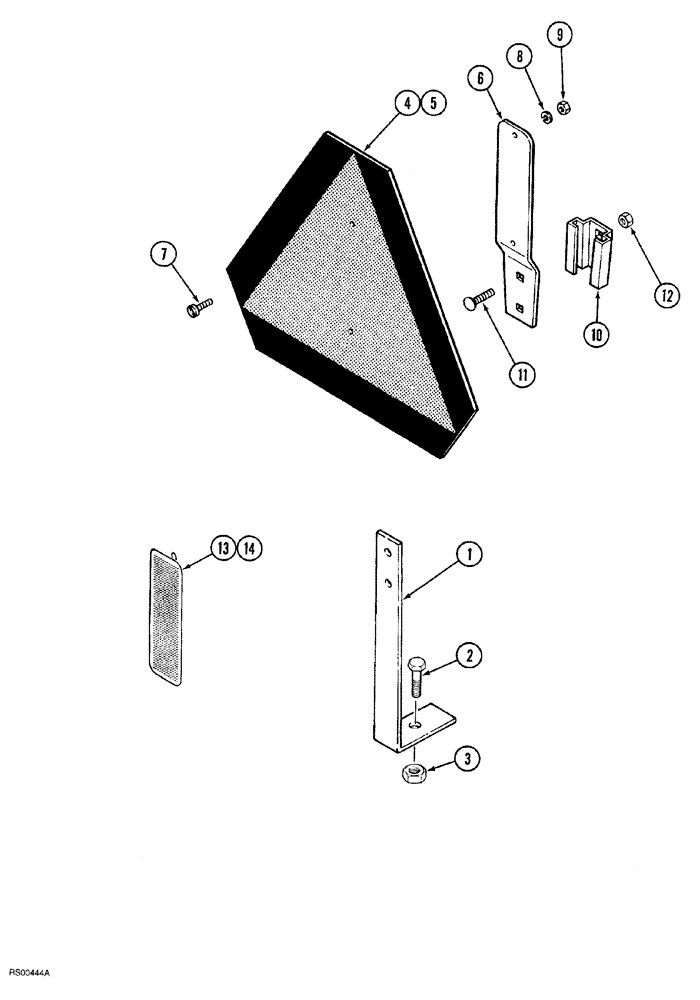

Запчасти Case IH 1830 (09-046) - REFLECTORS AND SMV EQUIPMENT (00) - COMPLETE MACHINE

1

149477C1

SUPPORT

SMV emblem

1шт.

2

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

3

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

4

A59450

WARNING SIGN

EMBLEM ASSEMBLY slow moving vehicle, Includes: Ref. 5 - 9

1шт.

5

321-4311

DECAL

SMV emblem

1шт.

6

A59451

BRACKET

emblem mounting

1шт.

7

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

machine, pan Phillips, No. 10 NC x 1/2"

2шт.

8

195-513

WASHER,#10

flat, 7/32" x 1/2" x 3/64"

2шт.

9

225-14110

NUT,#10-24

2шт.

10

A59457

BRACKET

mounting

1шт.

11

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

13

1284365C2

REFLECTOR

amber, on frame

1шт.

14

1284374C1

REFLECTOR,Reflector Red

red, on frame

2шт.
