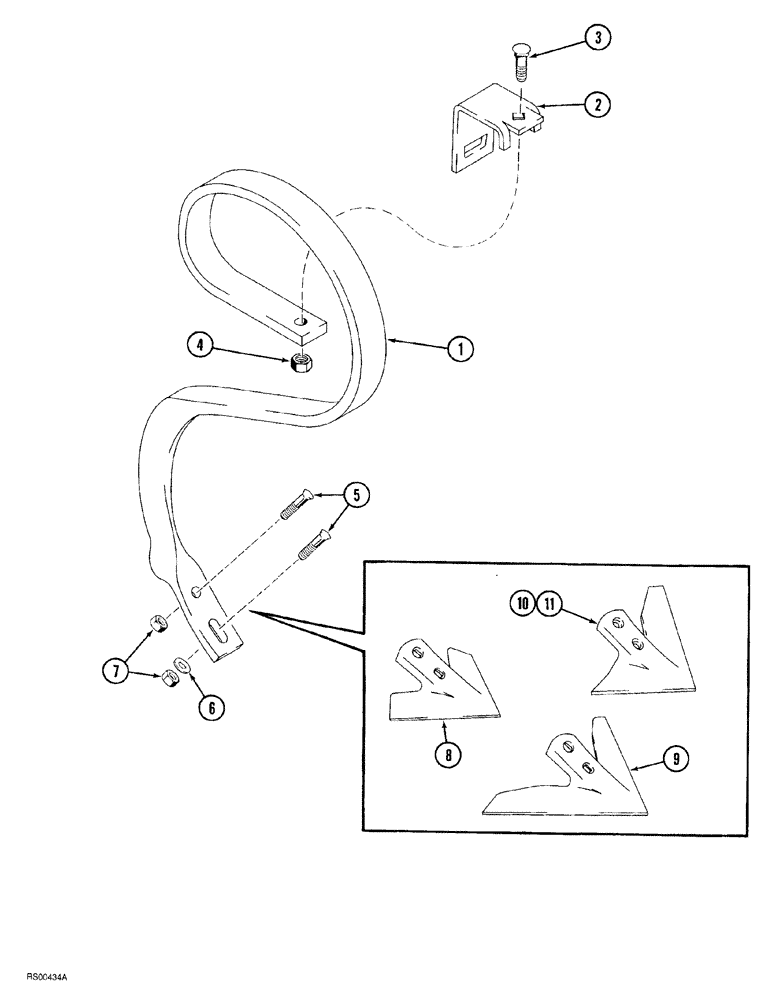

Запчасти Case IH 1830 (09-026) - GROUND WORKING TOOL, VIBRA TILL (Sep 24 2010 10:14:00.2561 AM) (00) - COMPLETE MACHINE

1

1547054C1

SHANK

Vibra Till

1шт.

2

1547057C1

CLAMP

Vibra Till shank

1шт.

3

433-864

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 4", Gr 5

1/2" NC x 4"

1шт.

4

231-4218

LOCK NUT,1/2"-13, GB

hex, self-locking, 1/2" NC

1шт.

5

420-3724

CARRIAGE BOLT,#3, 7/16" - 14 x 1 1/2", Gr 8

plow, 7/16" NC x 1-1/2", grade 8

2шт.

6

495-81010

WASHER,.469" x 1 1/4" x .060"

flat, 15/32" x 1-1/4" x 1/16"

1шт.

7

425-107

NUT,7/16"-14, G5

2шт.

8

1547097C2

SWEEP

7.5

1шт.

9

1547098C2

SWEEP

9.0

1шт.

10

1547103C2

SWEEP

9CL

1шт.

11

1547104C2

SWEEP

9CR

1шт.
