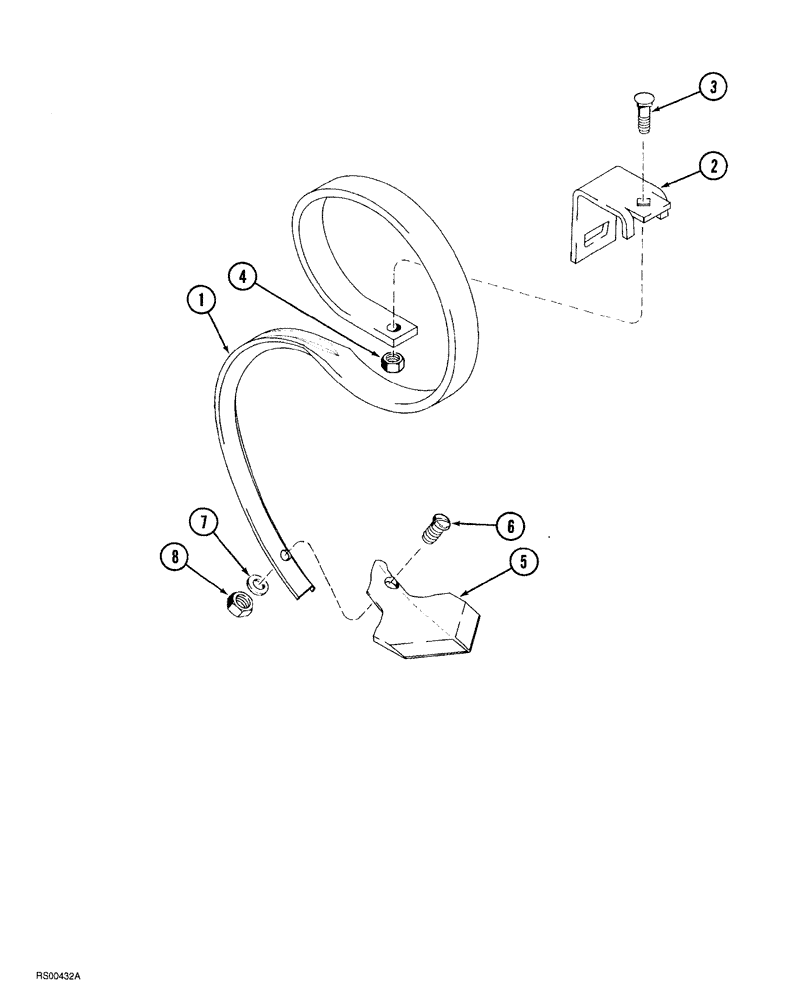

Запчасти Case IH 1830 (09-022) - GROUND WORKING TOOL, VIBRA TINE (00) - COMPLETE MACHINE

1

1547080C1

SHANK

VibraTine

1шт.

2

136215A1

CLAMP

shank, Replaces: 138583C1

1шт.

3

411-764

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 4", Gr 2

carriage, 7/16" NC x 4", grade 2

1шт.

4

231-4217

LOCK NUT,7/16"-14, GB

hex, self-locking, 7/16" NC

1шт.

5

811191C1

POINT

CHISEL reversible, 1-3/8", not shown

1шт.

5

1547180C1

SWEEP

Danish type, 2-1/2", service only

1шт.

5

1547181C1

SWEEP

Vibra Tine, 4-1/2"

1шт.

5

1547182C1

SWEEP

Vibra Tine, 7"

1шт.

5

1547183C1

SWEEP

Danish type, 9"

1шт.

6

138544C1

PLOW BOLT,3/8" - 16 x 1.58" Cl 5B

tool mounting

1шт.

7

495-81136

WASHER,10.31mm ID x 25.4mm OD x 3.81mm Thk

flat, 13/32" x 1" x 7/64"

1шт.

8

425-106

NUT,3/8"-16, Cl 5

1шт.
