(09-018) - ADJUSTING BRACKET AND SPACER BAR ATTACHMENTS

Запчасти Case IH 1830 (09-018) - ADJUSTING BRACKET AND SPACER BAR ATTACHMENTS (00) - COMPLETE MACHINE

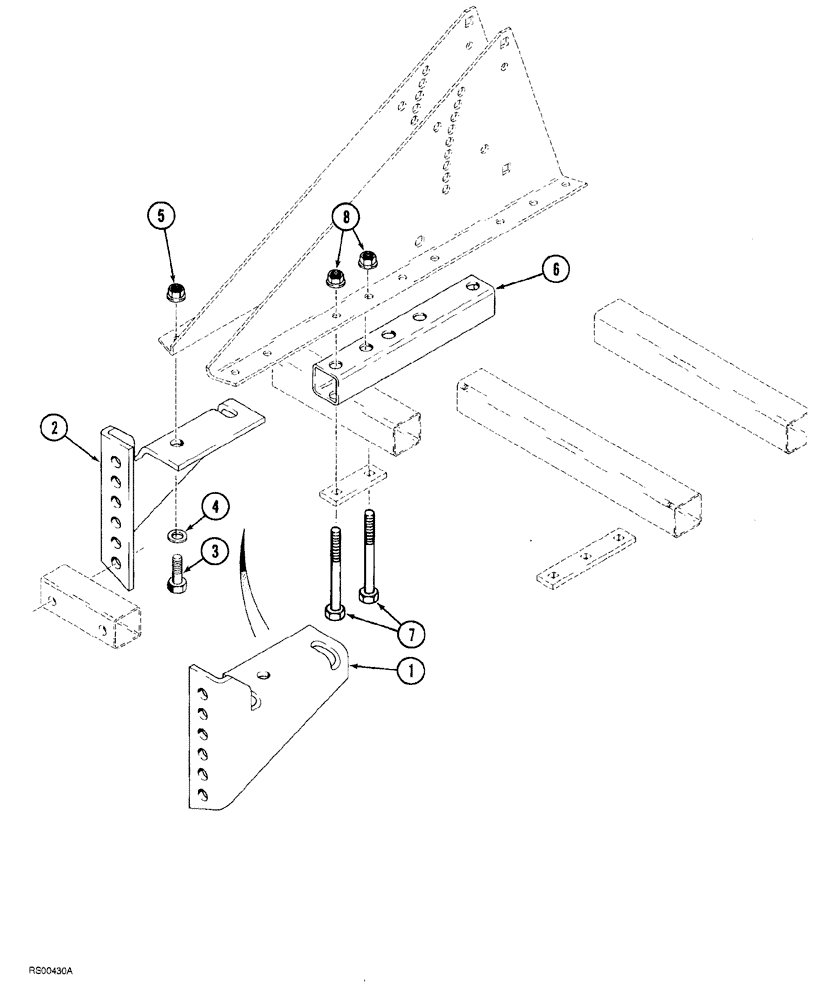

Схема запчастей Case IH 1830 - (09-018) - ADJUSTING BRACKET AND SPACER BAR ATTACHMENTS (00) - COMPLETE MACHINE
1
3
5
7
2
8
4
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

141698C3

BRACKET

adjusting, right-hand

1шт.

2

141699C3

BRACKET

adjusting, left-hand

1шт.

3

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

4

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

2шт.

5

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

6

149207C2

TUBE,101 mm Length

spacer

2шт.

7

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

hex, 1/2" NC x 5"

8шт.

8

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.
