Запчасти Case IH 1830 (09-004) - HITCH PARTS - RIGID FRAME, 6 ROW WIDE, 8 ROW NARROW AND 8 ROW WIDE (00) - COMPLETE MACHINE

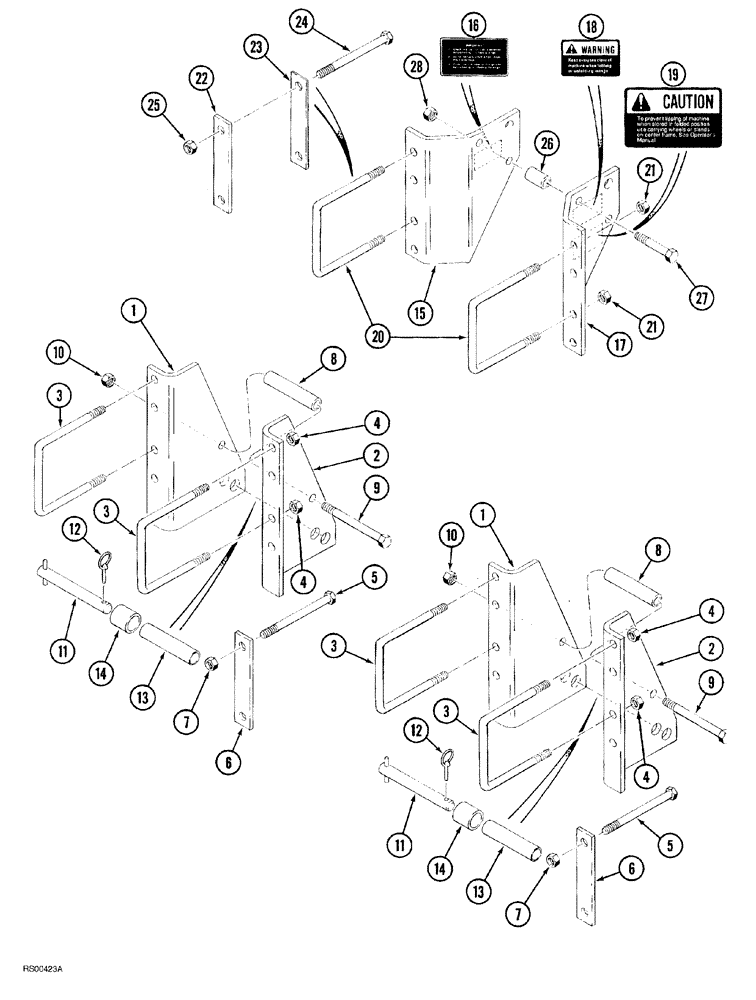

Схема запчастей Case IH 1830 - (09-004) - HITCH PARTS - RIGID FRAME, 6 ROW WIDE, 8 ROW NARROW AND 8 ROW WIDE (00) - COMPLETE MACHINE
21
4
6
7
2
10
12
25
17
3
8
9
15
23
22
4
12
5
3
9
1
27
11
10
24
19
5
4
28
14
3
4
14
3
13
13
8
16
7
26
18
11
2
21
1
6
20

Артикул

Название

Примечание

Количество

1

149488C1

SUPPORT

lower hitch, left-hand

2шт.

The hitch parts for units larger than 8 row wide are welded to the center section, they do not bolt on.

1шт.

2

149487C1

SUPPORT

lower hitch, right-hand

2шт.

3

493975R3

U-BOLT,3/4" - 10 x 6 1/2", Steel

BOLT "U" 3/4" NC, for 6 row wide and 8 row narrow with 5" x 7" frame

4шт.

4

425-1012

NUT,3/4"-10, G5

8шт.

5

426-12144

BOLT,Hex, 3/4" - 10 x 9", Gr 8

hex, 3/4" NC x 9", grade 8, for 8 row wide with 7" x 7" frame

8шт.

6

147448C1

STRAP

hitch, for 8 row wide with 7" x 7" frame

4шт.

7

231-42112

NUT,3/4"-10, GB

hex, self-locking, 3/4" NC, for 8 row wide with 7" x 7" frame

8шт.

8

147350C1

SPACER

lower bracket

2шт.

9

413-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

hex, 3/4" NC x 7-1/2"

2шт.

10

231-42112

NUT,3/4"-10, GB

hex, self-locking, 3/4" NC

2шт.

11

1279504C1

PIN,28.57mm OD x 226mm L

Assy, mounting

2шт.

12

372907R91

LINCH PIN

self-locking

2шт.

13

147340C1

SPACER

hitch, Category III

2шт.

14

147341C1

SPACER

hitch

2шт.

15

1547049C1

MAST ASSEMBLY

PLATE hitch, upper, left-hand, Includes: Ref. 16

1шт.

If dealer is looking for the bushing required to convert mast hole from Category III to Category II, the part number is 97772

1шт.

16

1250723C1

DECAL

important, cab clearance

1шт.

17

1547074C1

PLATE

hitch, upper, right-hand, Includes: Ref. 18 and 19

1шт.

If dealer is looking for the bushing required to convert mast hole from Category III to Category II, the part number is 97772

1шт.

18

59051C2

PRODUCT GRAPHIC

DECAL warning, keep everyone clear of machine when folding or unfolding wings

1шт.

19

1250839C1

DECAL

caution, to prevent tipping

1шт.

20

493975R3

U-BOLT,3/4" - 10 x 6 1/2", Steel

BOLT "U" 3/4" NC, for 6 row wide and 8 row narrow with 5" x 7" frame

2шт.

21

425-1012

NUT,3/4"-10, G5

4шт.

22

1254173C1

STRAP

reinforcing, for 8 row wide with 7" x 7" frame

2шт.

23

147448C1

STRAP

hitch, for 8 row wide with 7" x 7" frame

2шт.

24

426-12160

BOLT,Hex, 3/4" - 10 x 10", Gr 8

hex, 3/4" x 10", grade 8

4шт.

25

231-42112

NUT,3/4"-10, GB

hex, self-locking, 3/4" NC

4шт.

26

462425R2

SPACER

mast

1шт.

27

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

hex, 3/4" NC x 4"

1шт.

28

231-42112

NUT,3/4"-10, GB

hex, self-locking, 3/4" NC

1шт.

Выбрано товаров: 31
