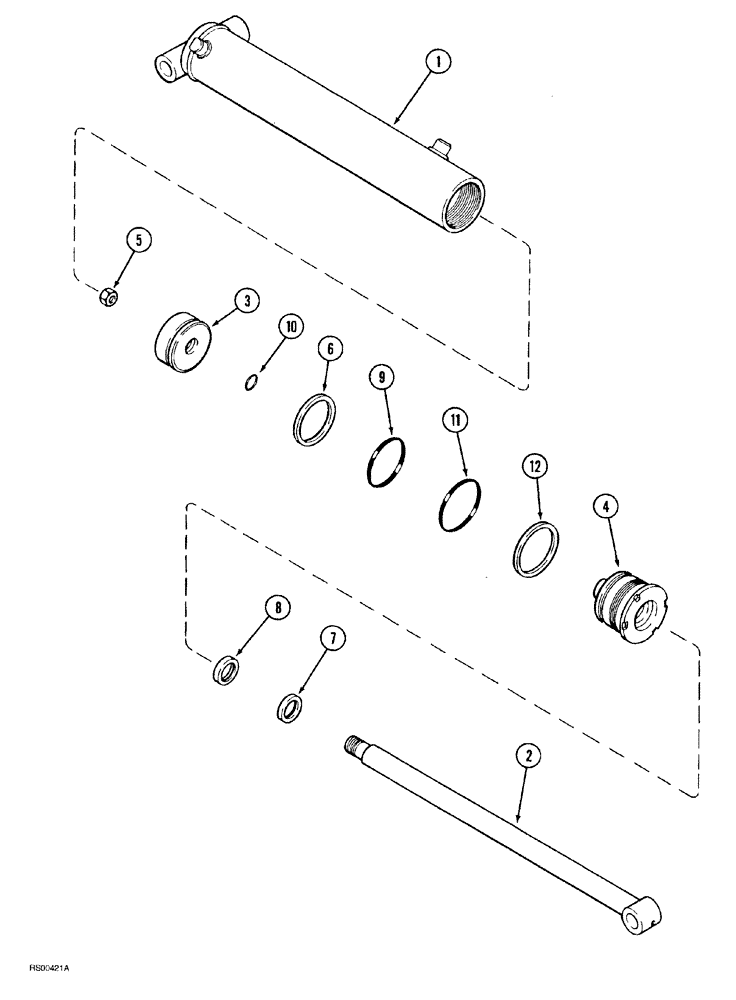

Запчасти Case IH 1830 (08-008) - HYDRAULIC CYLINDER, 4" ID X 16" STROKE (00) - COMPLETE MACHINE

1986595C1

CYLINDER,Double Acting, 38.1mm Rod, 381mm Stroke

ASSEMBLY, 102 mm (4") ID x 406 mm (16") stroke, Includes: Ref. 1 - 12

2шт.

1

1986657C1

TUBE ASSY.

cylinder

1шт.

2

1986658C1

ROD ASSY.

piston

1шт.

3

1986659C1

PISTON

cylinder

1шт.

4

1986660C1

HEAD

cylinder

1шт.

5

25126R1

LOCK NUT,1 1/8"-12, GC

hex, 1-1/8" NF, grade 8

1шт.

6

381110R1

RING

piston seal

1шт.

7

403460R1

WIPER SEAL,38mm ID x 50.9mm OD x 7.94mm Thk

SEALRING WIPER piston rod

1шт.

8

119203C1

SEAL

piston rod

1шт.

9

238-5153

O-RING,0.103" Thk x 3.487" ID, -153, Cl 5, 75 Duro

1шт.

10

238-6216

O-RING,0.139" Thk x 1.109" ID, -216, Cl 6, 90 Duro

1шт.

11

238-6240

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

1шт.

12

A41165

RING,126.42mm ID x 132.52mm OD x 1.4mm Thk

backup

1шт.
