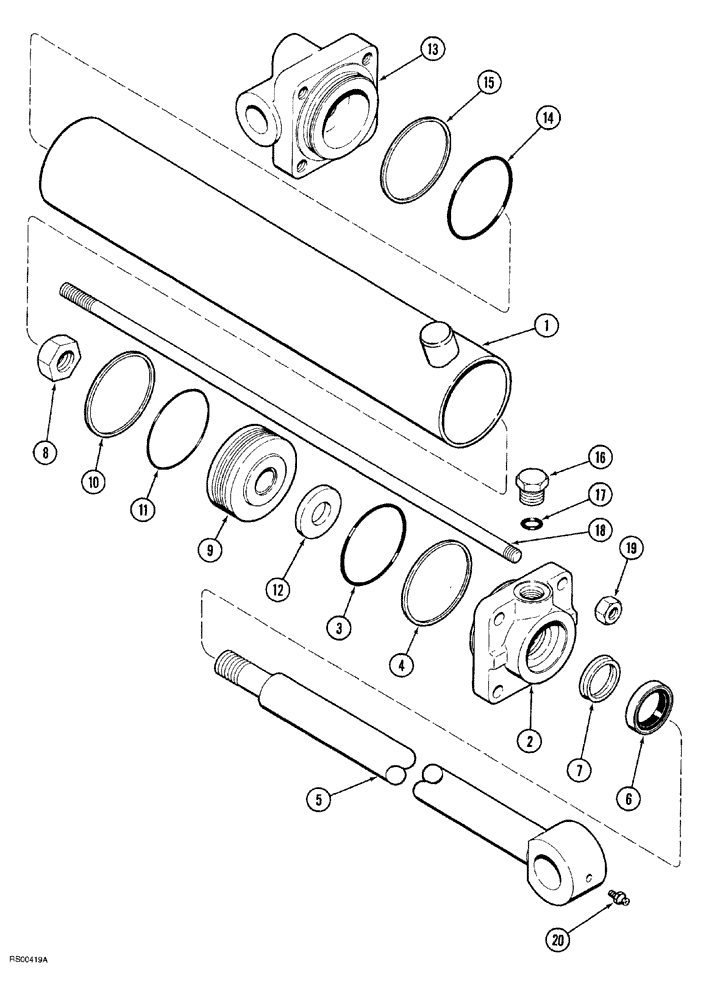

Запчасти Case IH 1830 (08-004) - HYDRAULIC CYLINDER, 3" ID X 16" STROKE (00) - COMPLETE MACHINE

1286442C91

HYDRAULIC CYLINDER,31.67mm Rod, 406.4mm Stroke

76 mm (3") ID x 406 mm (16") stroke, Includes: Ref. 1 - 19

2шт.

1

NSS

NOT SOLD SEPARAT

TUBE cylinder

1шт.

2

1272762C1

HEAD

GLAND cylinder

1шт.

3

238-6232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

Gland

1шт.

Part of Seal Kit P/N 79976C2

1шт.

4

NSS

NOT SOLD SEPARAT

RING backup, gland O-ring

1шт.

Part of Seal Kit P/N 79976C2

1шт.

5

149874C1

ROD

piston

1шт.

6

D95141

WIPER SEAL

WIPER piston rod

1шт.

Part of Seal Kit P/N 79976C2

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL piston rod

1шт.

Part of Seal Kit P/N 79976C2

1шт.

8

232-46314

LOCK NUT,7/8"-14, GC

1шт.

9

145225C2

PISTON

cylinder

1шт.

10

387373R1

RING

piston

1шт.

Part of Seal Kit P/N 79976C2

1шт.

11

238-5145

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

Backup, piston seal

1шт.

Part of Seal Kit P/N 79976C2

1шт.

12

1252171C1

SPACER

piston

1шт.

13

1286443C1

HEAD

cylinder

1шт.

14

238-6232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

Cylinder head

1шт.

Part of Seal Kit P/N 79976C2

1шт.

15

NSS

NOT SOLD SEPARAT

RING backup, cylinder head O-ring

1шт.

Part of Seal Kit P/N 79976C2

1шт.

16

214389

PLUG,3/4" - 16 ORB

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of Seal Kit P/N 79976C2

1шт.

18

149876C1

BOLT,7/16" - 14 x 533mm

tie, cylinder

4шт.

19

425-107

NUT,7/16"-14, G5

4шт.

20

219-6

LUBE NIPPLE,1/4" - 28 NPTF

straight, 1/4"-28 taper x 9/16"

1шт.

79976C2

SEAL KIT

KIT, Includes: Ref. 3, 4, 6, 7, 10, 11, 14, 15 and 17

1шт.
