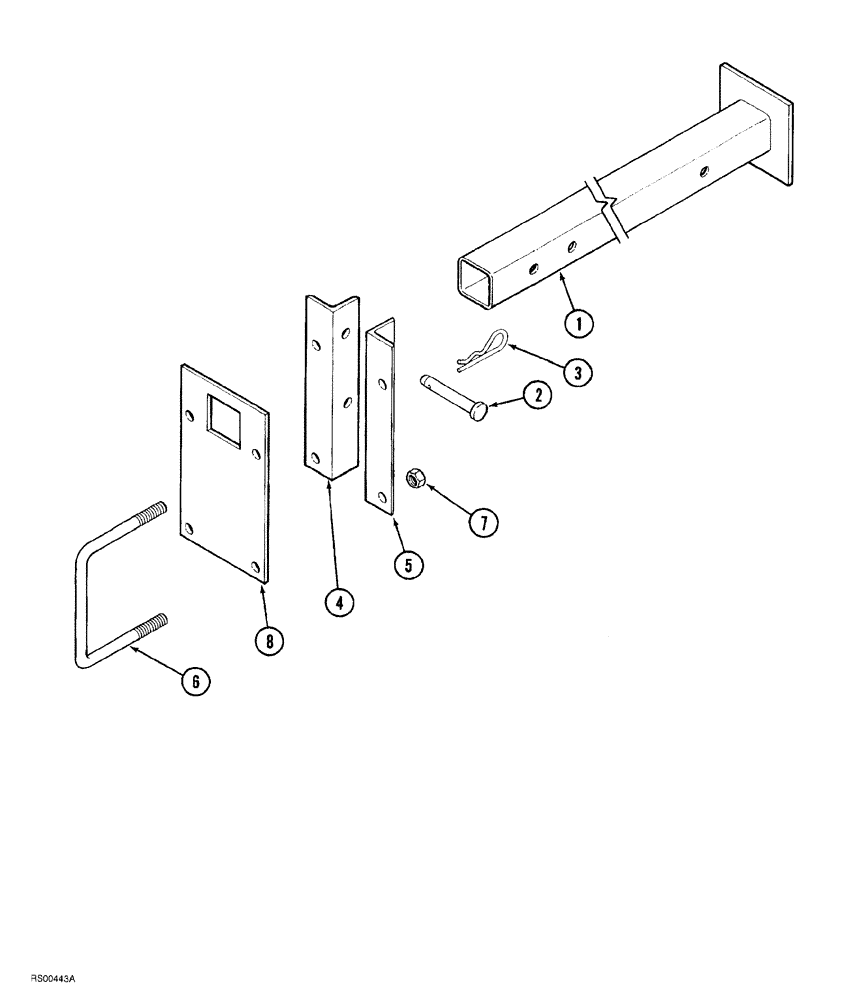

Запчасти Case IH 1830 (09-044) - STORAGE STAND No Description

1

145132C1

STAND

storage

1шт.

2

147245C1

PIN,15.88mm OD x 104mm L

pointed

1шт.

3

1978738C1

HAIR PIN COTTER

3/16"

1шт.

4

1264472C1

ANGLE

BRACKET stand

1шт.

5

1264473C1

ANGLE

BRACKET stand

1шт.

6

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

5/8" NC, 5" x 7", frame

2шт.

6

1250813C1

U-BOLT

5/8" NC, 7" x 7", frame

2шт.

7

425-1010

NUT,5/8"-11, G5

4шт.

8

149485C1

BAR

PLATE stand

1шт.
