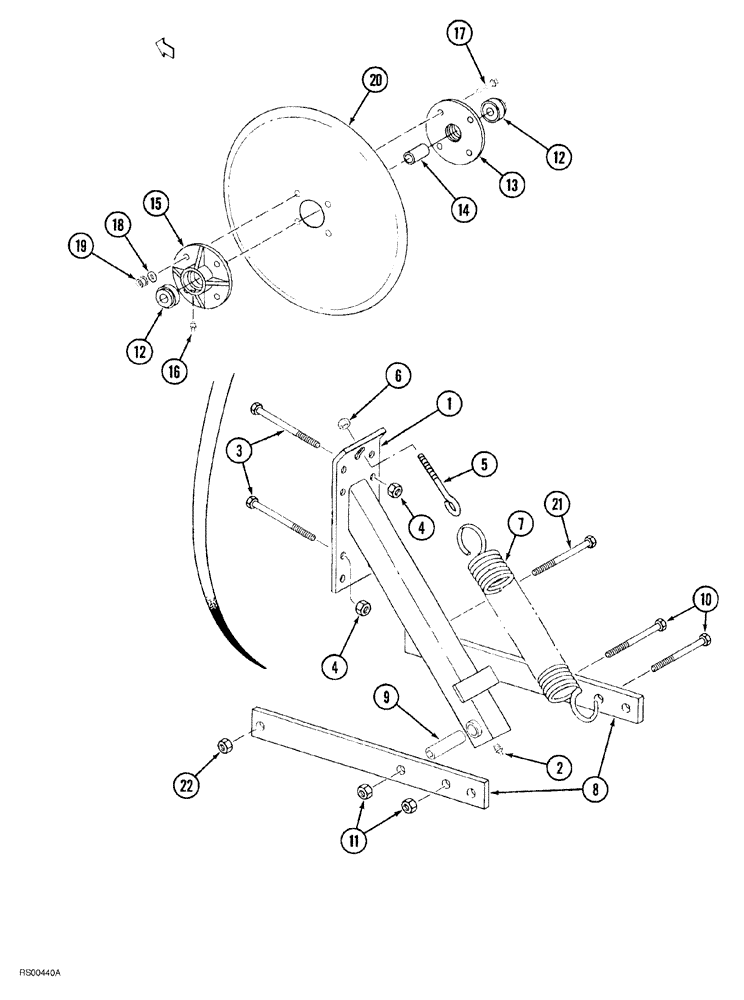

Запчасти Case IH 1830 (09-038) - ROLLING GUIDE FIN - FLEXIBLE No Description

1

141357C3

BRACKET

mounting

1шт.

2

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

3

413-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

Used on 5" x 7" frame

2шт.

3

413-10136

BOLT,Hex, 5/8" - 11 x 8-1/2", Gr 5

hex, 5/8" NC x 8-1/2", used on 7" x 7" frame

2шт.

4

231-42110

LOCK NUT,Hex, 5/8"-11, GB

2шт.

5

1267914C1

BOLT

eye, 5/8"

1шт.

6

208778C1

FLANGE NUT

hex, 5/8" NC

1шт.

7

1264485C1

SPRING

extension

1шт.

8

141359C4

BAR

guide fin

2шт.

9

1344587C1

SPACER

bar

1шт.

10

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

hex, 5/8" NC x 5-1/2"

2шт.

11

231-42110

LOCK NUT,Hex, 5/8"-11, GB

2шт.

12

1277585C91

BALL BEARING,16.03mm ID x 45.23mm OD x 18.69mm W

ball

2шт.

13

1264470C1

HUB

guide fin

1шт.

14

141369C2

SPACER

guide fin

1шт.

15

1264470C1

HUB

guide fin

1шт.

16

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

Special

1шт.

17

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

18

495-81021

WASHER,17/32" x 1" x .120"

flat, 17/32" x 1" x 7/64"

4шт.

19

232-5318

FLANGE NUT,Flg, 1/2"-13

hex flange, self-locking, 1/2" NC

4шт.

20

141205C2

DISC

BLADE guide fin

1шт.

21

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

hex, 5/8" NC x 5-1/2"

1шт.

22

231-42110

LOCK NUT,Hex, 5/8"-11, GB

1шт.
