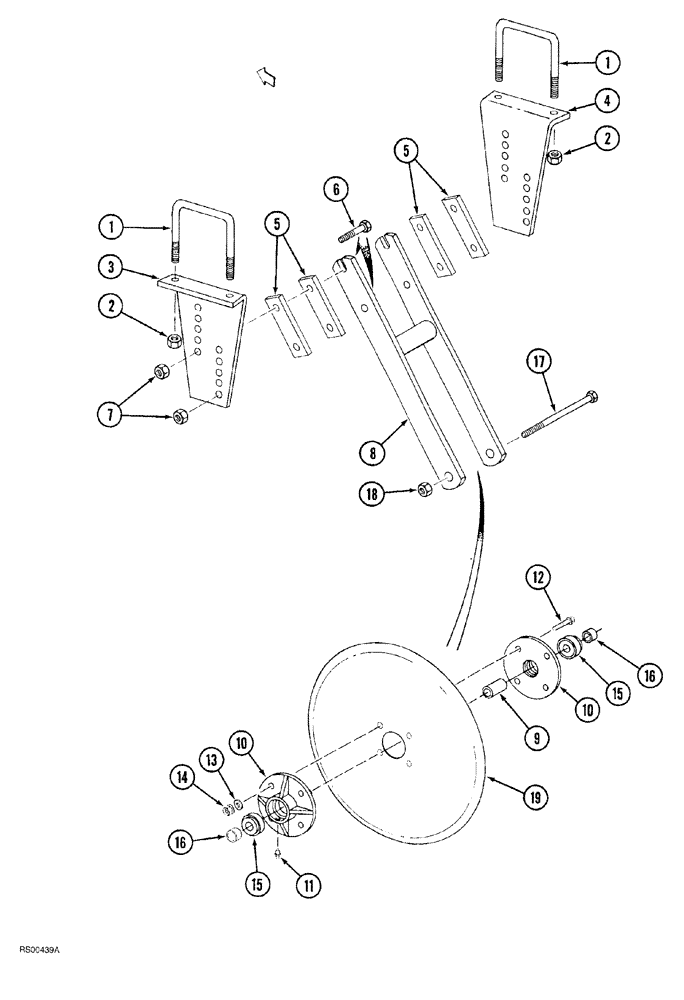

Запчасти Case IH 1830 (09-036) - ROLLING GUIDE FIN - RIGID No Description

1

542404R1

BOLT,U, 5/8" - 11 x 8.12"

U, 5/8" NC, 5" x 8"

2шт.

2

230-42110

LOCK NUT,5/8"-11, GA

hex, self-locking, 5/8" NC

4шт.

3

149508C1

BRACKET

guide fin, left

1шт.

4

149509C1

BRACKET

guide fin, right

1шт.

5

101143A1

BAR

SPACER, Serial Range: frame,-bracket

4шт.

6

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

4шт.

7

231-42110

LOCK NUT,Hex, 5/8"-11, GB

4шт.

8

483299R92

FRAME

rolling guide

1шт.

9

141369C2

SPACER

guide fin

1шт.

10

1264470C1

HUB

guide fin

2шт.

11

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

Special

2шт.

12

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

13

495-81021

WASHER,17/32" x 1" x .120"

flat, 17/32" x 1" x 7/64"

4шт.

14

232-5318

FLANGE NUT,Flg, 1/2"-13

hex flange, self-locking, 1/2" NC

4шт.

15

1277585C91

BALL BEARING,16.03mm ID x 45.23mm OD x 18.69mm W

ball

2шт.

16

149510C1

SPACER

hub

2шт.

17

413-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 5

hex, 5/8" NC x 7"

1шт.

18

231-42110

LOCK NUT,Hex, 5/8"-11, GB

1шт.

19

141205C2

DISC

BLADE guide fin

1шт.
