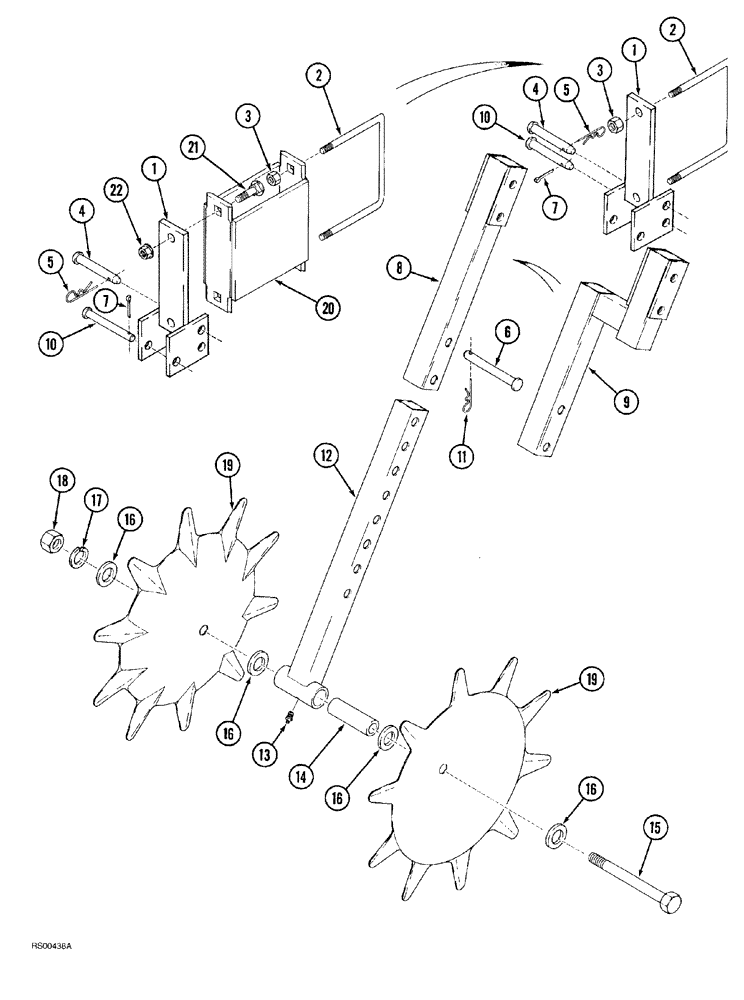

Запчасти Case IH 1830 (09-034) - ROLLING SHIELD No Description

1

147369C3

BRACKET

mounting

1шт.

2

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

5/8" NC, 5" x 7", frame

1шт.

2

1250813C1

U-BOLT

5/8" NC, 7" x 7", frame

1шт.

3

425-1010

NUT,5/8"-11, G5

2шт.

4

147245C1

PIN,15.88mm OD x 104mm L

pointed

1шт.

5

1980543C1

HAIR PIN COTTER

cotter, hair, 5/32" diameter

1шт.

6

520277R1

PIN

headed, 5/8" x 2-7/8"

1шт.

7

432-1216

COTTER PIN,3/16" x 1"

1шт.

8

145015C5

TUBE

front

1шт.

9

1254376C5

TUBE,116 mm Length

front, offset

1шт.

10

147245C1

PIN,15.88mm OD x 104mm L

pointed, plain head

1шт.

11

1980543C1

HAIR PIN COTTER

cotter, hair, 5/32" diameter

1шт.

12

145017C4

TUBE

rear

1шт.

13

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

14

1995717C1

BUSHING,19.6 mm ID x 31.8 mm OD x 100 mm

1шт.

15

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

hex, 3/4" NC x 5-1/2"

1шт.

16

495-81046

WASHER,25/32" x 2" x .120"

flat, 25/32" x 2" x 1/8"

4шт.

17

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

18

425-1012

NUT,3/4"-10, G5

1шт.

19

147311C1

SHIELD

rolling, 10 teeth

2шт.

20

113996A2

BRACKET

rolling shield extension

1шт.

21

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

5/8" NC x 2"

2шт.

22

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

2шт.
