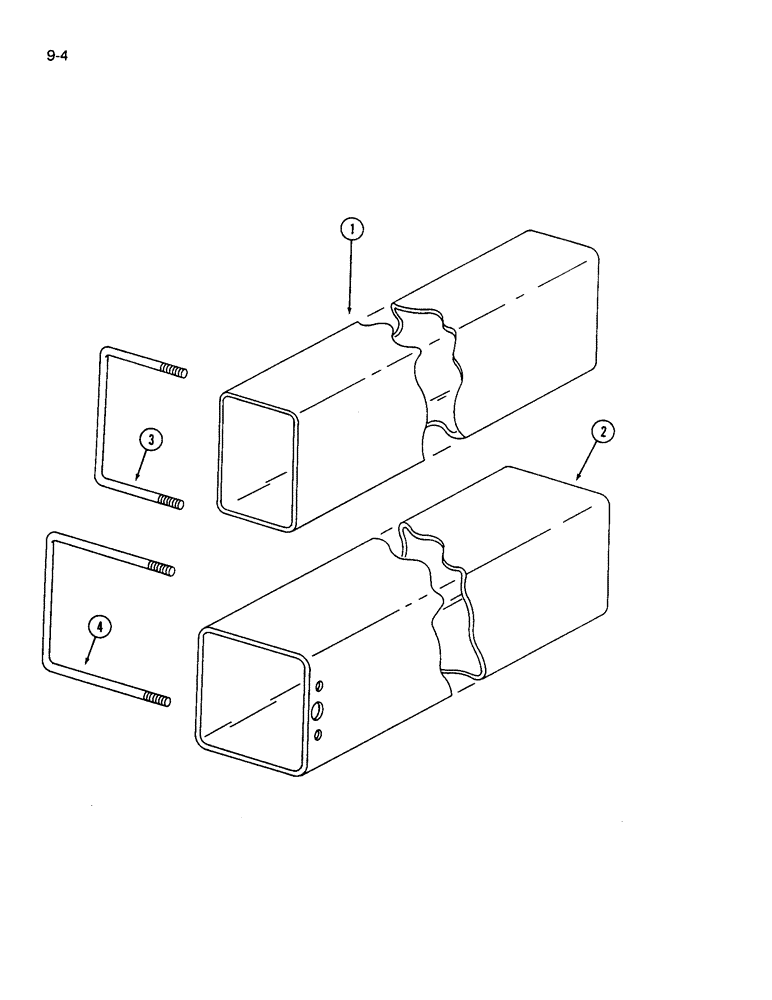

Запчасти Case IH 183 (9-04) - FRAME - RIGID

1

145075C1

TUBE

FRAME - main, 5 x 7 x 190 inch, 6 row narrow

1шт.

1

147401C1

TUBE

FRAME - main, 5 x 7 x 168 inch, 4 row wide

1шт.

1

149443C1

TUBE,6450 mm Length

FRAME - main, 5 x 7 x 254 inch, 6 row wide and 8 row narrow

1шт.

1

149444C1

TUBE,8382 mm Length

FRAME - main, 7 x 7 x 330 inch, 8 row wide

1шт.

2

147402C1

TUBE,9398 mm Length

FRAME - main, 7 x 7 x 370 inch, 12 row narrow

1шт.

3

493975R3

U-BOLT,3/4" - 10 x 6 1/2", Steel

- 3/4 inch NC, for 5 x 7 inch frame

4шт.

4

147451C2

U-BOLT,3/4" - 10 x 217.45mm

- 3/4 inch NC, for 7 x 7 inch frame

4шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

8шт.
