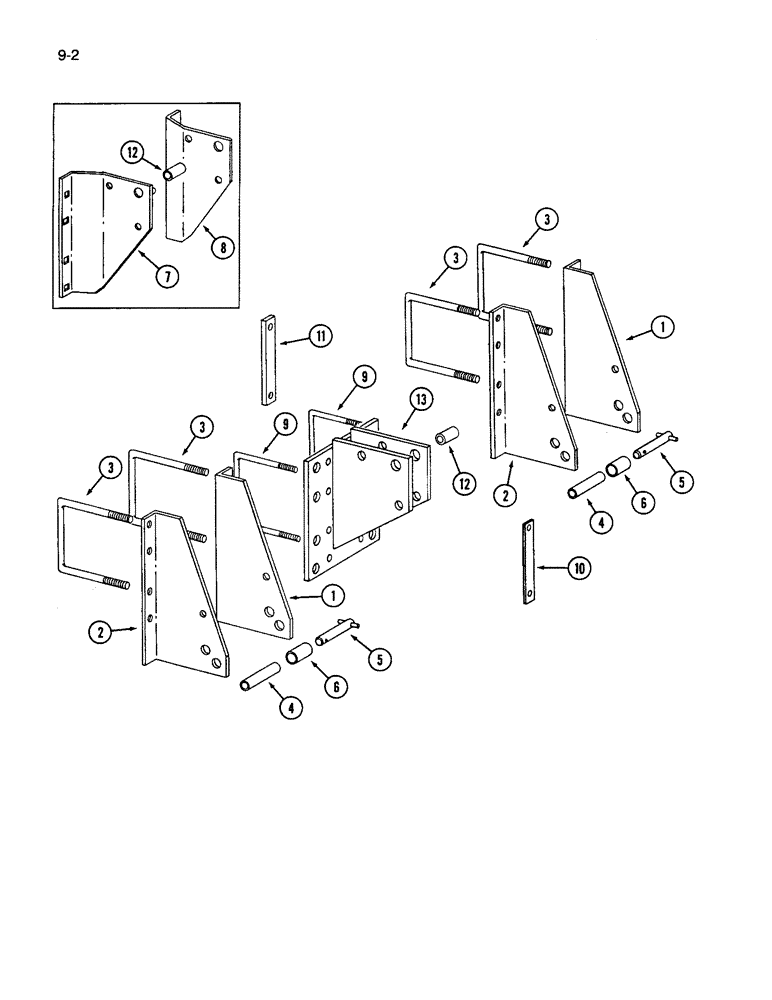

Запчасти Case IH 183 (9-02) - MAST AND HITCH PARTS, 6 ROW AND LARGER

1

149488C1

SUPPORT

BRACKET - lower hitch, left

2шт.

2

149487C1

SUPPORT

BRACKET - lower hitch, right

2шт.

3

493975R3

U-BOLT,3/4" - 10 x 6 1/2", Steel

- 3/4 inch NC, for 5 x 7 inch frame

4шт.

3

147451C2

U-BOLT,3/4" - 10 x 217.45mm

- 3/4 inch NC, for 7 x 7 inch frame

4шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

8шт.

4

147350C1

SPACER

- lower bracket

2шт.

424-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 2

- hex, 3/4 NC x 7-1/2 inch, Grade 2

2шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex lock, 3/4 inch NC

2шт.

5

1279504C1

PIN,28.57mm OD x 226mm L

- hitch (Replaces 147339C1)

2шт.

372907R91

LINCH PIN

PIN - hitch

2шт.

6

147341C1

SPACER

- hitch

2шт.

6

147340C1

SPACER

- hitch, Category III

2шт.

7

1254160C91

PLATE

- mast left

1шт.

1250723C1

DECAL

- important

1шт.

8

1254161C91

PLATE

- mast right

1шт.

59051C2

PRODUCT GRAPHIC

DECAL - warning

1шт.

1250839C1

DECAL

- caution

1шт.

9

493975R3

U-BOLT,3/4" - 10 x 6 1/2", Steel

- 3/4 inch NC, for 5 x 7 inch frame

2шт.

9

147451C2

U-BOLT,3/4" - 10 x 217.45mm

- 3/4 inch NC, for 7 x 7 inch frame

2шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

10

1254173C1

STRAP

- reinforcing, for 8 and 12 row wide, 12 and 16 row

1шт.

narrow

2шт.

413-12152

BOLT,Hex, 3/4" - 10 x 9-1/2", Gr 5

4шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex lock, 3/4 inch NC

4шт.

10

1985990C1

STRAP

- reinforcing, for 12 row wide and 16 row narrow frames

2шт.

413-16168

BOLT,Hex, 1" - 8 x 10-1/2", Gr 5

- hex, 1 x 10-1/2 inch

4шт.

492-11100

LOCK WASHER,1"

1"

4шт.

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

4шт.

11

147448C1

STRAP

- mast, for 8 row wide and 12 row narrow with 7 x 7 inch

1шт.

frames

2шт.

11

1254174C1

STRAP

- mast, for 12 row wide and 16 row narrow frames

2шт.

413-12160

BOLT,Hex, 3/4" - 10 x 10", Gr 5

- hex, 3/4 NC x 10 inch

4шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex lock, 3/4 inch NC

4шт.

12

462425R1

SPACER

- upper link

1шт.

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x 4 inch

1шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex lock, 3/4 inch NC

1шт.

13

1986002C1

MAST ASSEMBLY

1шт.

1250723C1

DECAL

- important

1шт.

59051C2

PRODUCT GRAPHIC

DECAL - warning

1шт.

1250839C1

DECAL

- caution

1шт.
