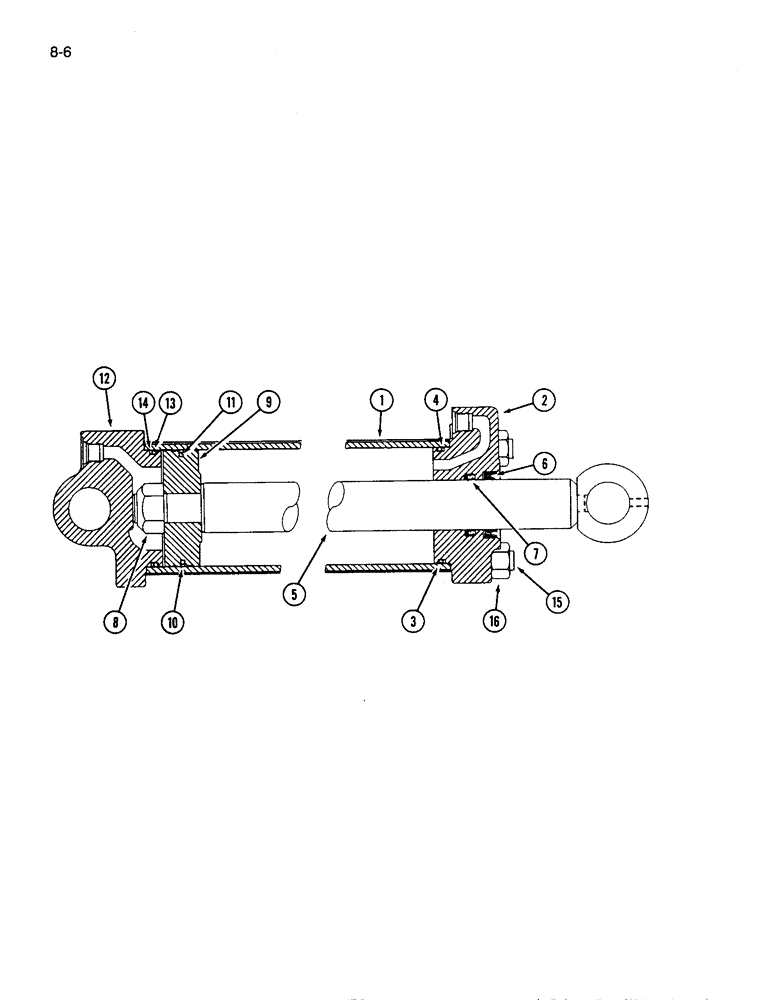

Запчасти Case IH 183 (8-6) - HYDRAULIC CYLINDER, 3-1/2 INCH BORE X 16 INCH STROKE

1286369C91

HYDRAULIC CYLINDER,38.02mm Rod, 406.4mm Stroke

CYLINDER ASSEMBLY - 3-1/2 x 16 inch

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

1286371C1

HEAD

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - 3-1/4 ID x 3-1/2 inch OD, gland

1шт.

Part of seal kit P/N 79978C2 and (2) wear rings and (1) O-ring not used on this cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of seal kit P/N 79978C2 and (2) wear rings and (1) O-ring not used on this cylinder

1шт.

5

1260810C1

ROD

- piston

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit P/N 79978C2 and (2) wear rings and (1) O-ring not used on this cylinder

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of seal kit P/N 79978C2 and (2) wear rings and (1) O-ring not used on this cylinder

1шт.

8

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex lock, 7/8 inch NF, Grade 8

1шт.

9

145422C2

PISTON

- cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of seal kit P/N 79978C2 and (2) wear rings and (1) O-ring not used on this cylinder

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 3 ID x 3-3/16 inch OD, backup, piston seal

1шт.

Part of seal kit P/N 79978C2 and (2) wear rings and (1) O-ring not used on this cylinder

1шт.

12

1286370C1

HEAD

- cylinder, closed end

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - 3-1/4 ID x 3-1/2 inch OD, cylinder head

1шт.

Part of seal kit P/N 79978C2 and (2) wear rings and (1) O-ring not used on this cylinder

1шт.

14

NSS

NOT SOLD SEPARAT

RING - backup, cylinder head O-ring

1шт.

Part of seal kit P/N 79978C2 and (2) wear rings and (1) O-ring not used on this cylinder

1шт.

15

149879C2

BOLT,5/8" - 11 x 545mm

- tie, cylinder

4шт.

16

425-1010

NUT,5/8"-11, G5

4шт.

79978C2

SEAL KIT

KIT - seal, Includes Refs. 3, 4, 6, 7, 10, 11, 13 and 14 and (2) wear rings and (1) O-ring not used on this cylinder

1шт.
