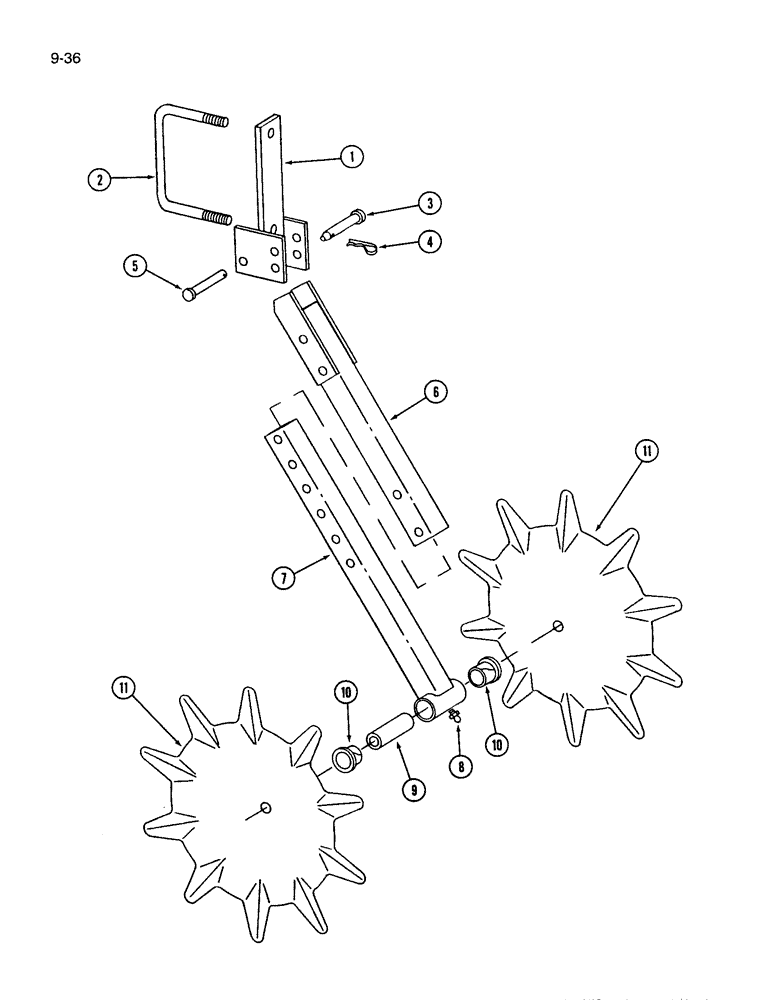

Запчасти Case IH 183 (9-36) - ROLLING SHIELD

1

147369C2

BRACKET

ASSEMBLY - attaching

1шт.

2

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

- frame retaining, for 5 x 7 inch frames

1шт.

2

1250813C1

U-BOLT

- frame retaining, for 7 x 7 inch frames

1шт.

425-1010

NUT,5/8"-11, G5

2шт.

3

147245C1

PIN,15.88mm OD x 104mm L

- pointed

1шт.

4

520175R1

CLIP

PIN - cotter, hair, 3/16 inch diameter

1шт.

5

520277R1

PIN

- pointed head, 5/8 x 2-7/8 inch

1шт.

432-1216

COTTER PIN,3/16" x 1"

1шт.

6

145015C3

TUBE

ASSEMBLY - front, rolling

1шт.

6

1254376C3

TUBE ASSY.

TUBE ASSEMBLY - front, offset rolling

1шт.

147245C1

PIN,15.88mm OD x 104mm L

- 5/8 inch, plain head

1шт.

520175R1

CLIP

PIN - cotter, hair, 3/16 inch diameter

1шт.

7

145017C3

TUBE ASSY.

TUBE ASSEMBLY - rear

1шт.

8

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

9

542937R1

BUSHING

1шт.

10

546100R1

BUSHING,31.75mm ID x 34.14mm OD x 31.75mm L

- flanged nyliner

2шт.

18844R1

BOLT,Hex, 3/4" - 10 x 5 1/2", Gr 2

- hex, 3/4 x 5-1/2 inch

1шт.

495-81046

WASHER,25/32" x 2" x .120"

- flat, 25/32 x 2 x 1/8 inch

4шт.

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

1шт.

11

147311C1

SHIELD

- formed, 10 teeth

2шт.
