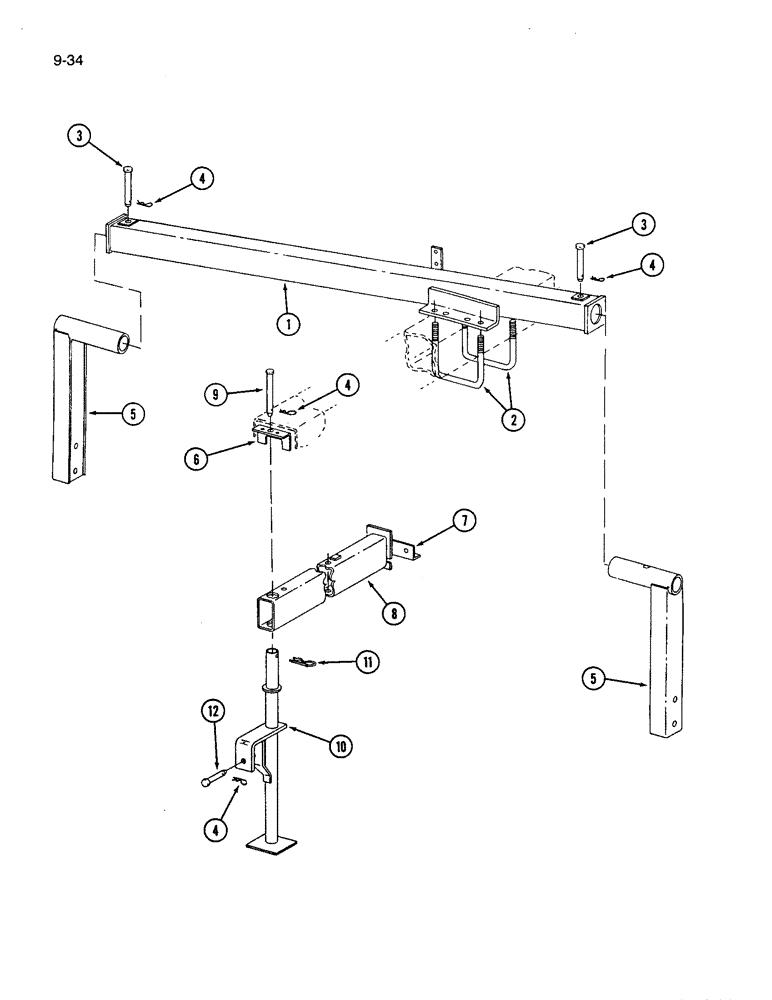

Запчасти Case IH 183 (9-34) - TRANSPORT ATTACHMENT

1

145092C3

TUBE,634 mm Length

FRAME - transport

1шт.

2

492989R2

BOLT,7/8" - 9 x 9"

U-BOLT - 7/8 inch NC, for 5 x 7 inch frames

2шт.

2

493841R1

U-BOLT

- 7/8 inch NC, for 7 x 7 inch frames

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

4шт.

3

145130C1

PIN

- transport

2шт.

4

486830R1

COTTER PIN

PIN - cotter, hair, 3/16 inch diameter

4шт.

5

145088C1

SOCKET

SUPPORT - wheel arm socket

2шт.

6

149441C1

ANGLE

BRACKET - guide angle, for 5 x 7 inch frames

1шт.

6

149442C1

ANGLE

BRACKET - guide angle, for 7 x 7 inch frames

1шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex, flange, self-locking, 1/2 inch NC

2шт.

7

149522C1

ANGLE

BRACKET - sway bar angle, for 7 x 7 inch frames

1шт.

149567C1

BOLT

- special, 1/2 inch NC

2шт.

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex, flange, self-locking, 1/2 inch NC

2шт.

8

141255C1

TUBE

BAR - hitch sway

1шт.

9

141251C1

PIN

- sway bar retaining

1шт.

10

141260C2

STAND

ASSEMBLY - support

1шт.

11

473865R91

LINCH PIN

PIN - cotter, hair

1шт.

12

493990R2

PIN

- headed, stand retaining

1шт.
