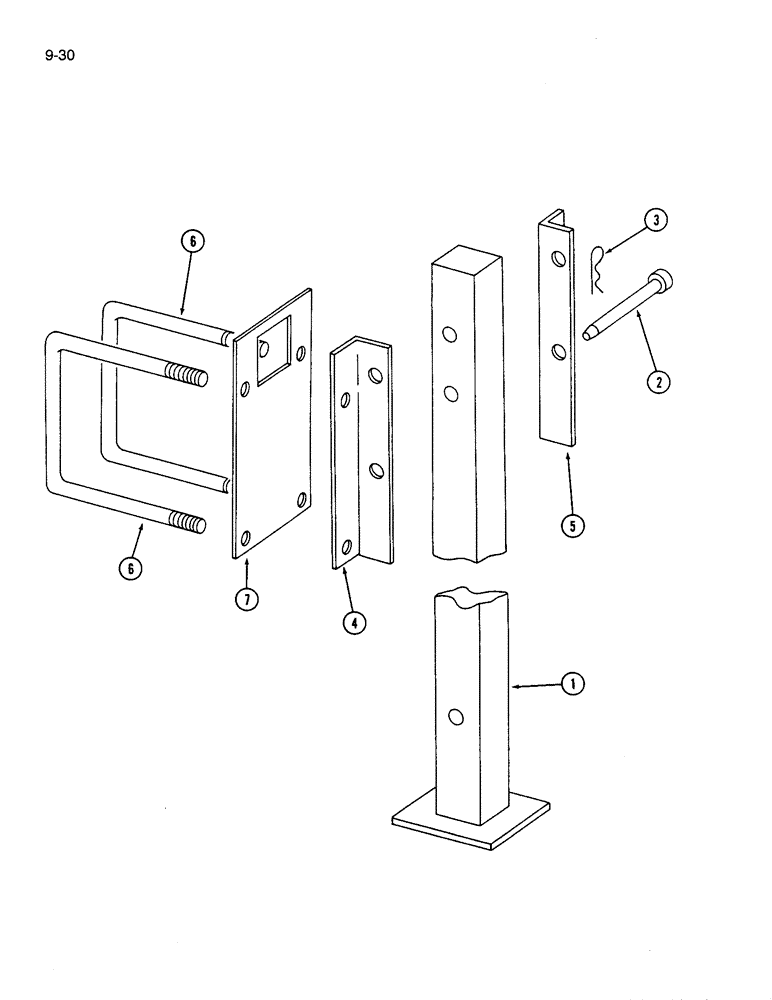

Запчасти Case IH 183 (9-30) - STORAGE STAND

1

145132C1

STAND

ASSEMBLY - storage

1шт.

2

147245C1

PIN,15.88mm OD x 104mm L

- stand

1шт.

3

486830R1

COTTER PIN

PIN - cotter, hair, 3/16 inch diameter

1шт.

4

1264472C1

ANGLE

BRACKET - stand angle, left

1шт.

5

1264473C1

ANGLE

BRACKET - stand angle, right

1шт.

6

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

- frame retaining, 5 x 7 inch frame

2шт.

6

1250813C1

U-BOLT

- frame retaining, 7 x 7 inch frame

2шт.

425-1010

NUT,5/8"-11, G5

4шт.

7

149485C1

BAR

PLATE - stand tie

1шт.
