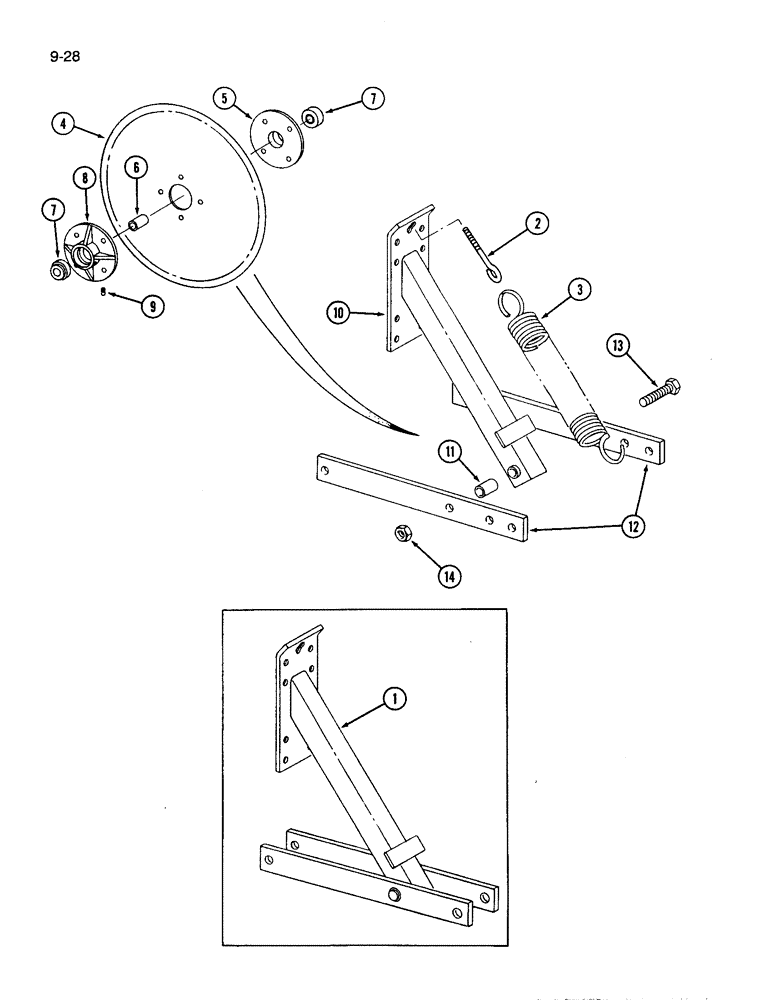

Запчасти Case IH 183 (9-28) - ROLLING GUIDE FIN

1

141360C2

BRACKET

ASSEMBLY - guide fin

1шт.

21953R1

HEADED PIN,3/4" x 6"

PIN - 3/4 x 6 inch

1шт.

32-1620

COTTER PIN,1/4" x 1 1/4"

PIN, SPLIT (COTTER), 1/4" x 1 1/4"

1шт.

113-650

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

for 5 x 7 inch frames Hex, 5/8"-11 x 6 1/2", G5

2шт.

19995R1

BOLT,Hex, 5/8" - 11 x 8 1/2", Gr 5

- hex, 5/8 x 8-1/2 inch, for 7 x 7 inch frames

2шт.

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- hex, 5/8 NC x 5-1/2 inch

1шт.

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8 inch NC

3шт.

66584D

FITTING

- grease, 3/16 inch

1шт.

2

1267914C1

BOLT

EYEBOLT - 5/8 inch

1шт.

208778C1

FLANGE NUT

- hex, 5/8 inch, flange lock

1шт.

3

145124C1

SPRING

- extension (Used on machines built 1981 and before)

1шт.

3

1264485C1

SPRING

- extension (Used on machines built 1982 and after)

1шт.

4

141205C2

DISC

BLADE - guide fin

1шт.

5

141370C1

HUB

- guide fin

1шт.

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, Grade 8

4шт.

Note - 495-81021 Washer added to the 426-824 Bolt 08/01/96

1шт.

232-5318

FLANGE NUT,Flg, 1/2"-13

NUT - hex flange lock, 1/2 inch NC

4шт.

6

141369C2

SPACER

- guide fin

1шт.

7

149157C91

BEARING

ASSEMBLY - (Used on machines built 1981 and before)

2шт.

7

1277585C91

BALL BEARING,16.03mm ID x 45.23mm OD x 18.69mm W

BEARING ASSEMBLY - (Used on machines built 1982 and after)

2шт.

8

1264470C1

HUB

- guide fin

1шт.

9

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4 inch NF

1шт.

10

141357C2

BRACKET

ASSEMBLY - guide fin (Replaces 141360C2)

1шт.

11

1344587C1

SPACER

- bar

1шт.

12

141359C3

BAR

- guide fin

2шт.

Ref #12, part #141359C3 Bar, when subbing to C4 see 1830 catalog for bolt 5/8" and not 3/4". bj 6-28-96

1шт.

13

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- hex, 5/8 NC x 5-1/2 inch

1шт.

14

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8 inch NC

1шт.
