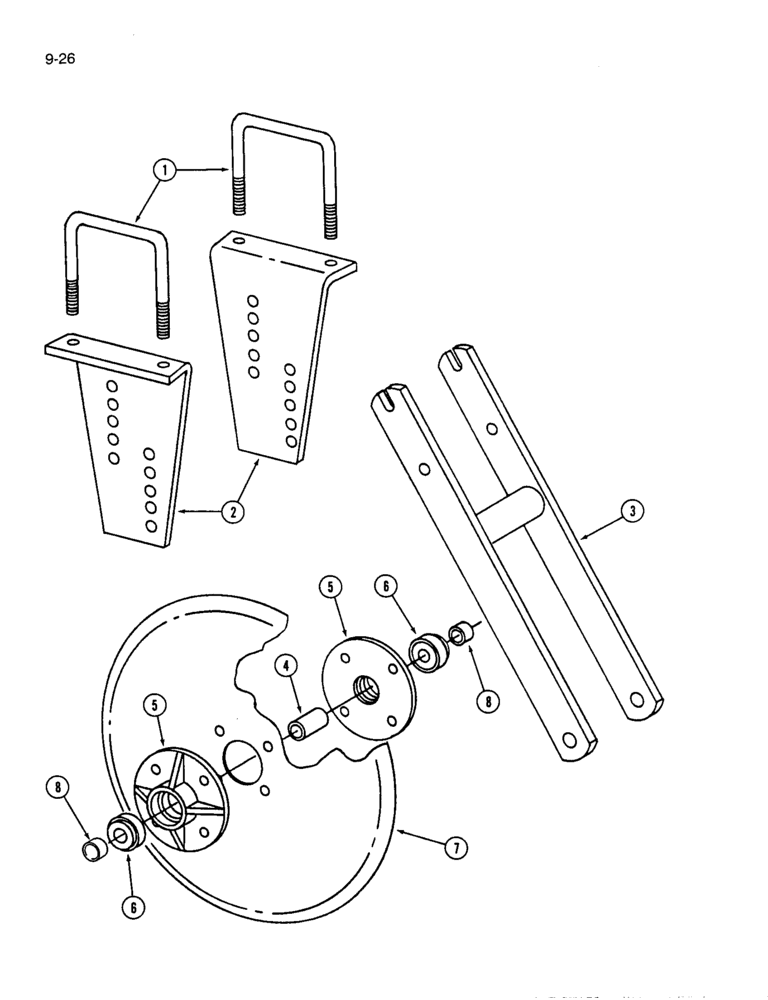

Запчасти Case IH 183 (9-26) - ROLLING GUIDE FIN - RIGID

1

542404R1

BOLT,U, 5/8" - 11 x 8.12"

U-BOLT - roll guide mounting

2шт.

425-1010

NUT,5/8"-11, G5

4шт.

2

149508C1

BRACKET

- guide fin, left

1шт.

2

149509C1

BRACKET

- guide fin, right

1шт.

424-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 2

- hex, 5/8 NC x 2 inch, Grade 2

4шт.

24-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 2

- hex, 5/8 NC x 7 inch

1шт.

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8 inch NC

5шт.

3

483299R92

FRAME

ASSEMBLY

1шт.

4

141369C2

SPACER

- guide fin

1шт.

5

141370C1

HUB

- guide fin

1шт.

5

1264470C1

HUB

- guide fin, with provision for lubrication fitting

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - lubrication, 1/4 inch UNF, for hub 1264470C1

1шт.

826-824

BOLT - hex, 1/2 NC x 1-1/2 inch, Grade 8 ( REPLACED 326-824 )

4шт.

495-81021

WASHER,17/32" x 1" x .120"

- flat, 17/32 x 1-1/16 x 1/8 inch ( REPLACED 496-21053 )

4шт.

232-5318

FLANGE NUT,Flg, 1/2"-13

NUT - hex flange lock, 1/2 inch NC

4шт.

6

1268017C91

BALL BEARING,15.9mm ID x 45.23mm OD x 18.67mm W

ASSEMBLY - (Used on machines built 1981 and before)

2шт.

6

1268017C91GV

BEARING

Value, Ball Bearing

2шт.

6

1277585C91

BALL BEARING,16.03mm ID x 45.23mm OD x 18.69mm W

BEARING ASSEMBLY - (Used on machines built 1982 and after)

2шт.

7

141205C2

DISC

BLADE - guide fin

1шт.

8

149510C1

SPACER

- hub

2шт.
