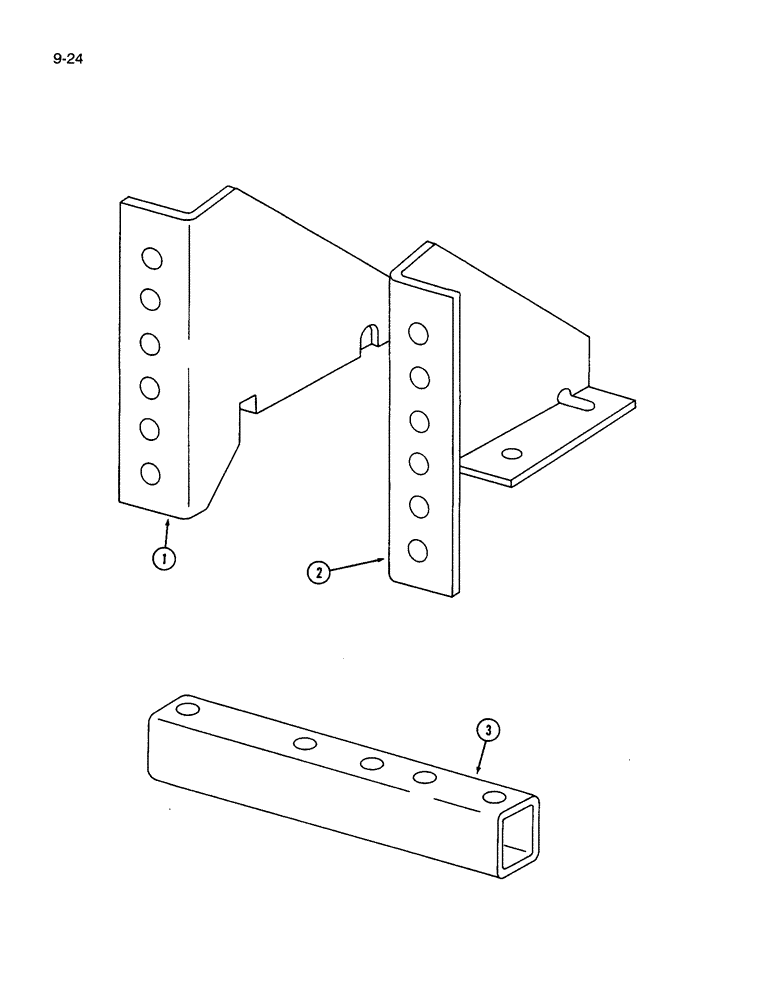

Запчасти Case IH 183 (9-24) - ADJUSTING BRACKET AND SPACER BAR ATTACHMENTS

1

141698C2

SUPPORT

BRACKET - adjusting, right

1шт.

2

141699C2

BRACKET

- adjusting, left

1шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch

2шт.

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex, flange, self-locking, 1/2 inch NC

4шт.

3

149207C1

TUBE,226 mm Length

- spacer

2шт.

411-884

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 5 1/4", Gr 2

BOLT - hex, 1/2 NC x 5-1/4 inch

8шт.

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex, flange, self-locking, 1/2 inch NC

8шт.
