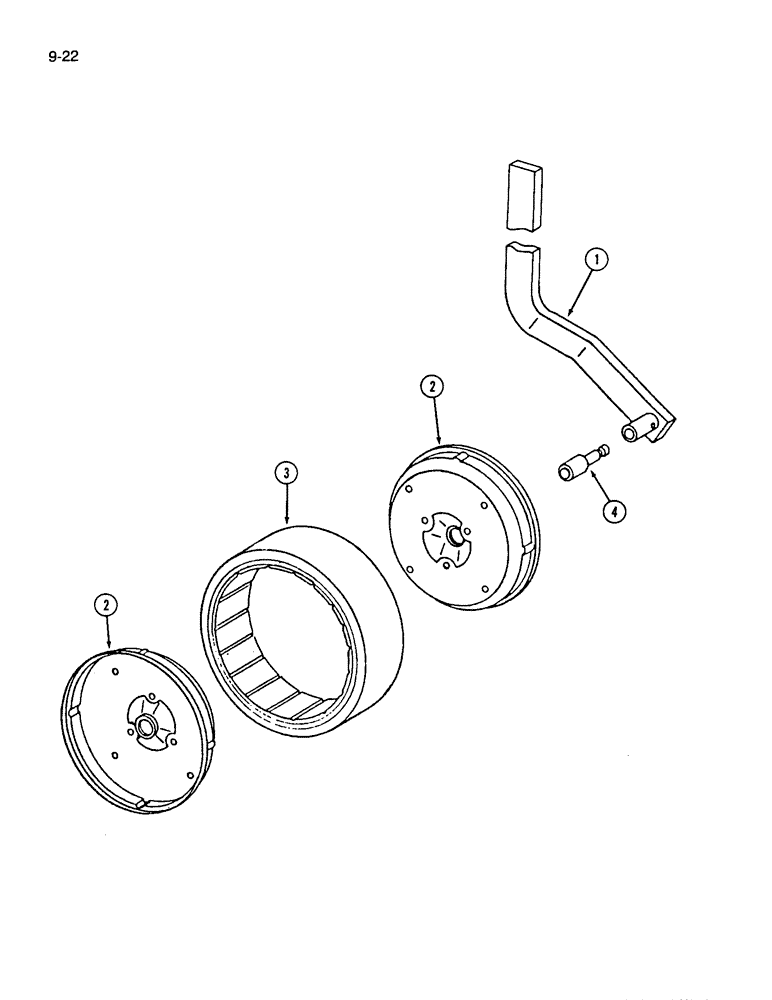

Запчасти Case IH 183 (9-22) - GAUGE WHEEL

1

141387C1

ARM ASSY.

ARM ASSEMBLY - gauge wheel

1шт.

22227R1

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - 3/8 x 3/8 inch

1шт.

1279445C91

WHEEL ASSY.

WHEEL ASSEMBLY - gauge

1шт.

2

526768R1

WHEEL

RIM - gauge wheel

2шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

7шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

7шт.

3

516492R1

TYRE/TIRE

TIRE - 4 x 12 inch semi-pneumatic

1шт.

4

526769R91

BALL BEARING,30mm OD x 98.04mm L

BEARING - ball

1шт.
