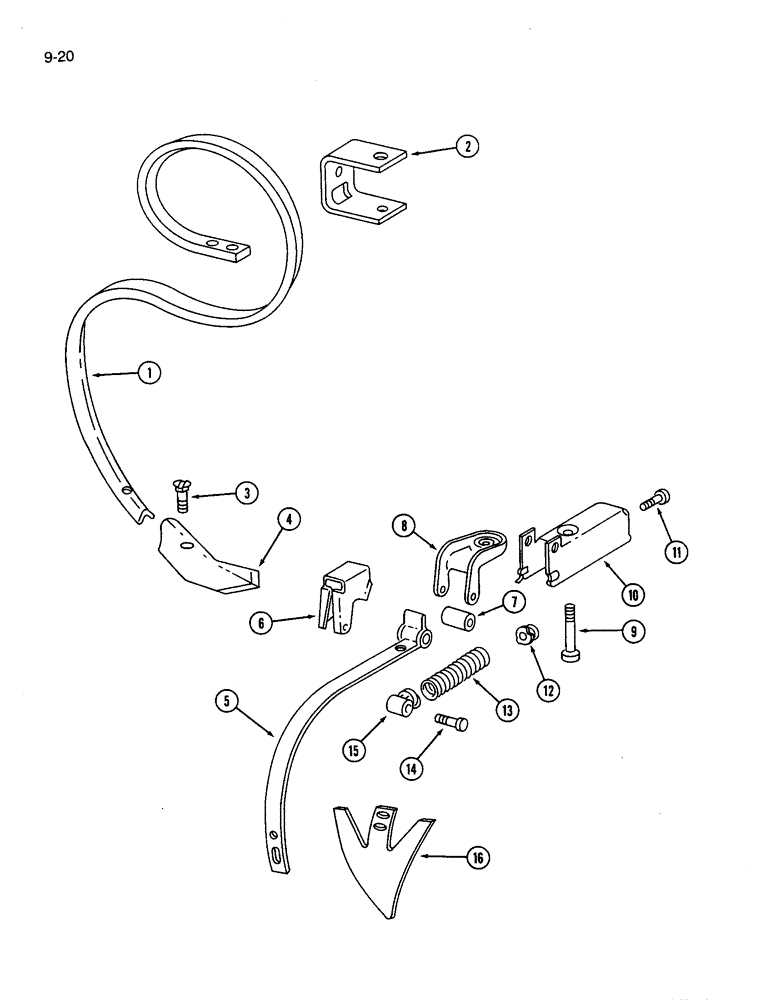

Запчасти Case IH 183 (9-20) - TOOLING EQUIPMENT, VIBRA TINE TOOLING AND VIBRA SHANK

1

734553R2

TINE

SHANK - tine

1шт.

2

138583C1

CLAMP

- tooth

1шт.

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

1шт.

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex, flange, self-locking, 1/2 inch NC

1шт.

REF#2- PART IS NOT PICTURED CORRECTLY. PART PICTURED IN THE 183 PARTSBOOK IS ACTUALLY P/N 145146C1. PLS REFERENCE QUALITY COMMENTS IN GPN. JBEDFORD 5/22/96

1шт.

3

138544C1

PLOW BOLT,3/8" - 16 x 1.58" Cl 5B

BOLT - tool mounting

1шт.

495-81136

WASHER,10.31mm ID x 25.4mm OD x 3.81mm Thk

- flat, 13/32 x 1 x 7/64 inch

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

4

100365C1

SHOVEL

SWEEP - 2-1/2 inch vibra tine

1шт.

4

100366C1

SWEEP

- 4 inch vibra tine

1шт.

4

100367C1

SWEEP

- 7 inch vibra tine

1шт.

4

811191C1

POINT

SHOVEL - double pointed

1шт.

5

813293C1

SHANK

- ground working tool

1шт.

6

591542R1

BRACKET

CLAMP - tool

2шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

1шт.

473197R1

FLANGE NUT

- hex flange lock, 1/2 inch NC

1шт.

7

811354C2

BUSHING

- shank

1шт.

8

811353C1

CLAMP

- shank top

1шт.

473197R1

FLANGE NUT

- hex flange lock, 1/2 inch NC

1шт.

811352C1

BOLT,1/2" - 13 x 3 1/2"

- hex, 1/2 x 3-1/2 inch

1шт.

9

591540R2

BOLT,Spcl, 1/2" - 13 x 4", Gr 5

BOLT - shank eccentric

1шт.

473197R1

FLANGE NUT

- hex flange lock, 1/2 inch NC

1шт.

10

811357C2

SUPPORT

BRACKET - shank

1шт.

11

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

1шт.

12

591547R1

PLUG

- spring

1шт.

13

591546R1

SPRING

- shank

1шт.

14

591545R1

PIN,13.08mm OD x 61.98mm L

- rear plug

1шт.

432-1216

COTTER PIN,3/16" x 1"

1шт.

15

591544R1

PLUG

- spring

1шт.

16

1980992C1

SHOVEL

SWEEP - left, 9 inch clipped wing

1шт.

16

1980993C1

SHOVEL

SWEEP - right, 9 inch clipped wing

1шт.

16

1980641C1

TIP

SWEEP - 7-1/2 inch, full

1шт.

16

1980642C1

SWEEP

- 9 inch, full

1шт.

21148R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 3/8", Gr 2

BOLT - special plow, 7/16 NC x 1-3/8 inch

2шт.

495-81011

WASHER,0.47" ID x 1.25" OD x 0.12" Thk

- flat, 15/32 x 1-1/4 x 7/64 inch

2шт.

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

2шт.
