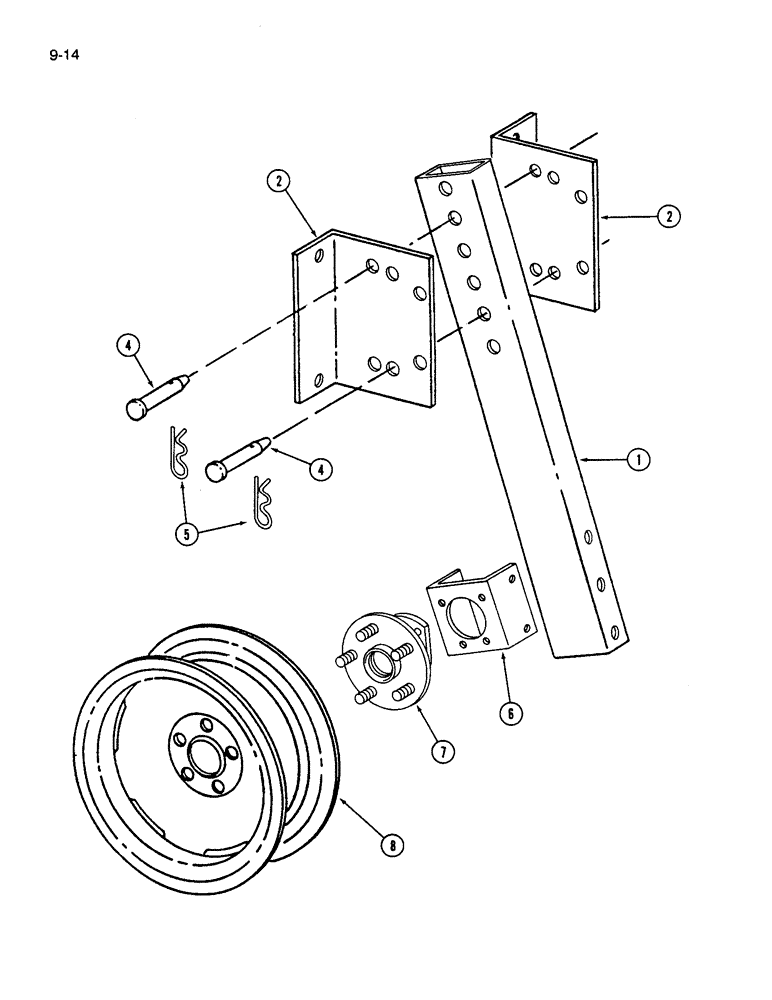

Запчасти Case IH 183 (9-14) - CARRYING WHEELS

1

141293C1

TUBE,758.5 mm Length

- carrying wheel

1шт.

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

- hex, 1/2 NC x 5 inch

2шт.

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex, flange, self-locking, 1/2 inch NC

2шт.

2

141297C2

ANGLE

BRACKET - carrying wheel (Also replaces 141295C1)

2шт.

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x 4 inch

2шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex lock, 3/4 inch NC

2шт.

413-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

- hex, 5/8 NC x 6-1/2 inch

2шт.

413-10136

BOLT,Hex, 5/8" - 11 x 8-1/2", Gr 5

- hex, 5/8 NC x 8-1/2 inch

2шт.

131-1130

LOCK NUT,5/8"-11, GA

NUT - 5/8 inch center lock

2шт.

4

141292C1

PIN

- support

2шт.

5

517843R1

COTTER PIN

PIN - cotter, hair, 3/16 inch

2шт.

6

141294C1

PLATE

- bearing mounting

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

7

141298C91

HUB

SPINDLE ASSEMBLY - carrying wheel bearing

1шт.

149254C1

WHEEL NUT

- spindle stud retaining, 12 mm - 1.50

5шт.

8

141276C1

WHEEL

- carrying, 13 inch

1шт.

387841R91

VALVE

- TR-413 tire

1шт.
