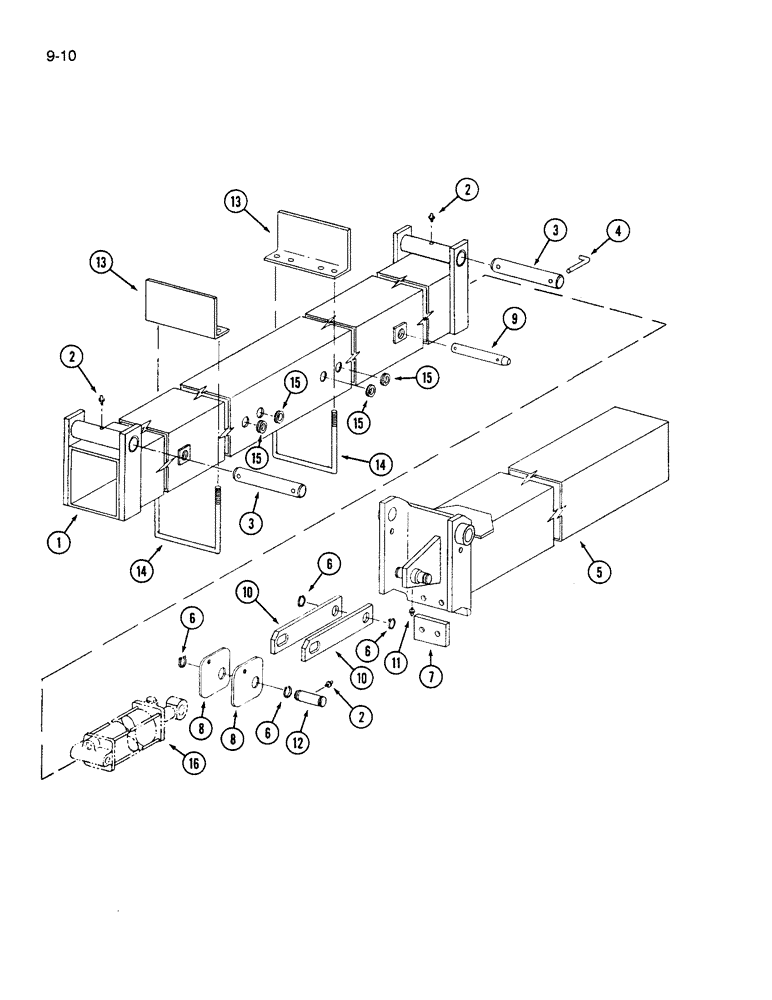

Запчасти Case IH 183 (9-10) - FRAME - FOLDING, 12 ROW WIDE AND 16 ROW NARROW

1

1264060C2

ASSEMBLY

SECTION ASSEMBLY - center

1шт.

2

25391R1

FITTING

- grease, 1/4 inch straight

4шт.

3

1264497C1

PIN,38.1mm OD x 312mm L

- hinge

2шт.

432-1216

COTTER PIN,3/16" x 1"

2шт.

23173R1

CLEVIS PIN

PIN - clevis, 1/2 x 2-3/4 inch

2шт.

5

147431C1

ASSEMBLY

SECTION ASSEMBLY - wing (Early production)

2шт.

5

1986454C1

FRAME

SECTION ASSEMBLY - wing (Later production)

2шт.

6

609053R1

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

8шт.

7

149426C2

PLATE

- stop (Early production)

2шт.

433-1048

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3", Gr 5

BOLT - round head square neck, 5/8 NC x 3 inch

4шт.

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 9/64 inch

28шт.

495-81007

WASHER,21/32" x 1 3/4" x .060"

- flat, 21/32 x 1-3/4 x 3/64 inch

4шт.

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8 inch NC

4шт.

7

1344857C1

BLOCK

PLATE - stop (Later production)

2шт.

433-1048

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3", Gr 5

BOLT - round head square neck, 5/8 NC x 3 inch

4шт.

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8 inch NC

4шт.

8

1254398C1

SUPPORT

ROLLER - cylinder support (Early production)

4шт.

424-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

- hex, 1/4 NC x 1/2 inch, Grade 1

4шт.

480891R1

NUT

- hex flange lock, 1/4 inch NC

4шт.

8

1334194C1

ROLLER

- cylinder support (Later production)

4шт.

9

145174C1

PIN,31.75mm OD x 228mm L

- cylinder anchor

2шт.

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

4шт.

10

1254397C1

BAR

LINK - wing bar (Early production)

4шт.

10

1980724C1

BAR

LINK - wing bar (Later production)

4шт.

11

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 17/32"

4шт.

12

147227C1

PIN

- cylinder and wing link (Early production)

2шт.

12

1985949C1

PIN,31.7mm OD x 124mm L

- cylinder and wing link (Later production)

2шт.

13

149452C1

ANGLE

- wing stop

2шт.

14

1250813C1

U-BOLT

- wing tube

2шт.

425-1010

NUT,5/8"-11, G5

4шт.

15

100247C1

GROMMET

- frame

4шт.

16

REF

INSTRUCTION

CYLINDER ASSEMBLY - double acting hydraulic (See page 8-3)

2шт.
