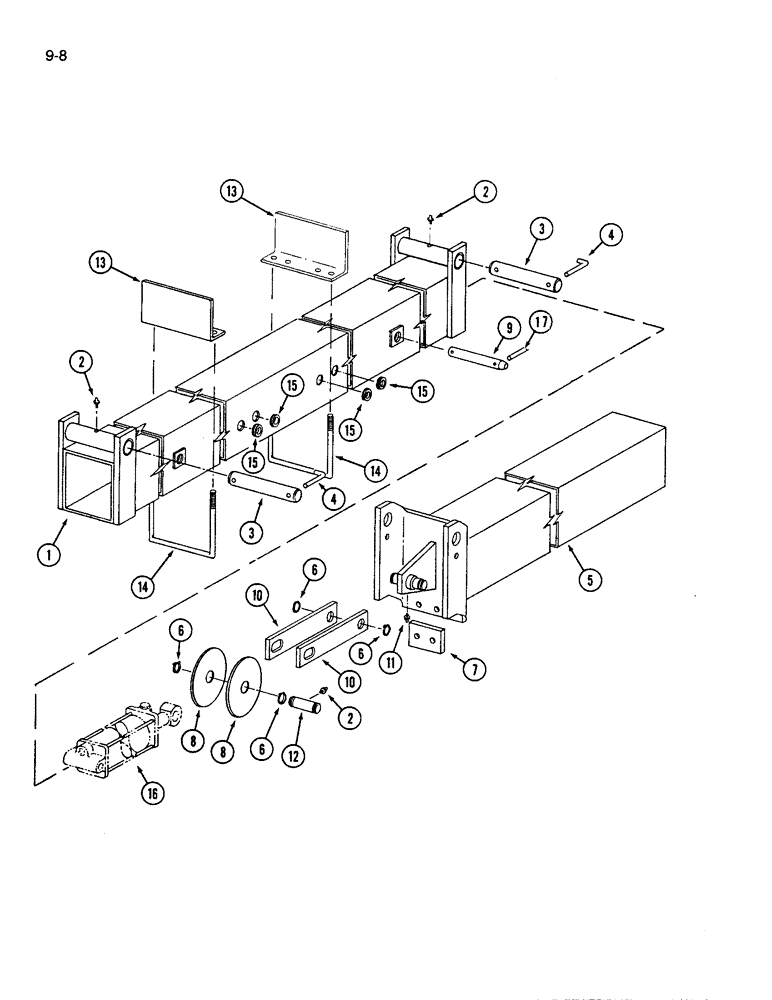

Запчасти Case IH 183 (9-08) - FRAME - FOLDING, 8 AND 12 ROW NARROW AND 8 ROW WIDE

1

147394C3

ASSEMBLY

SECTION ASSEMBLY - center, 8 row narrow

1шт.

1

147387C3

ASSEMBLY

SECTION ASSEMBLY - center, 8 row wide

1шт.

1

144887C3

ASSEMBLY

SECTION ASSEMBLY - center, 12 row narrow

1шт.

2

25391R1

FITTING

- grease, 1/4 inch straight

4шт.

3

147392C1

PIN,38.1mm OD x 228mm L

- hinge, 8 row narrow

2шт.

3

144892C1

PIN,38.1mm OD x 290.5mm L

- hinge, 8 row wide and 12 row narrow

2шт.

32-3232

COTTER PIN,1/2" x 2"

PIN - cotter, 1/2 x 2 inch

2шт.

495-81223

WASHER,1 17/32" x 2 1/4" x .060"

- flat, 1-17/32 x 2-1/4 x 3/64 inch

4шт.

4

491601R2

PIN

- pivot lock, 8 row narrow

2шт.

4

149507C1

BAR

PIN - pivot lock, 8 row wide and 12 row narrow

2шт.

5

147396C3

FRAME

SECTION ASSEMBLY - wing, 8 row narrow

2шт.

5

147385C3

FRAME

SECTION ASSEMBLY - wing, 8 row wide

2шт.

5

1986452C1

FRAME

SECTION ASSEMBLY - wing, 8 row wide

2шт.

5

149434C3

FRAME

SECTION ASSEMBLY - wing, 12 row narrow

2шт.

5

1986453C1

FRAME

SECTION ASSEMBLY - wing, 12 row narrow

2шт.

21226R1

WASHER

- flat, 1-9/32 x 2 x 1/4 inch

4шт.

6

609053R1

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

8шт.

7

149426C2

PLATE

- stop

2шт.

433-1048

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3", Gr 5

BOLT - round head square neck, 5/8 NC x 3 inch

4шт.

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 9/64 inch

28шт.

495-81007

WASHER,21/32" x 1 3/4" x .060"

- flat, 21/32 x 1-3/4 x 3/64 inch

4шт.

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8 inch NC

4шт.

8

145035C1

WASHER

ROLLER - cylinder support (Early production)

4шт.

8

1334194C1

ROLLER

- cylinder support (Later production)

4шт.

9

147393C1

PIN

- cylinder anchor, 8 row narrow

2шт.

9

145174C1

PIN,31.75mm OD x 228mm L

- cylinder anchor, 8 row wide and 12 row narrow

2шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

4шт.

10

149559C1

BAR

LINK - wing bar (Early production)

4шт.

10

1980724C1

BAR

LINK - wing bar (Later production)

4шт.

11

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 17/32"

4шт.

12

149560C1

PIN,29.3mm OD x 99.5mm L

- cylinder and wing link (Early production)

2шт.

12

1985949C1

PIN,31.7mm OD x 124mm L

- cylinder and wing link (Later production)

2шт.

13

149452C1

ANGLE

- wing stop

2шт.

14

542404R1

BOLT,U, 5/8" - 11 x 8.12"

U-BOLT - wing tube, for 5 x 7 frames

2шт.

14

1250813C1

U-BOLT

- wing tube, for 7 x 7 frames

2шт.

425-1010

NUT,5/8"-11, G5

4шт.

15

100247C1

GROMMET

4шт.

16

REF

INSTRUCTION

CYLINDER ASSEMBLY - hydraulic fold (See page 8-3)

2шт.

17

432-2032

COTTER PIN,5/16" x 2"

2шт.
