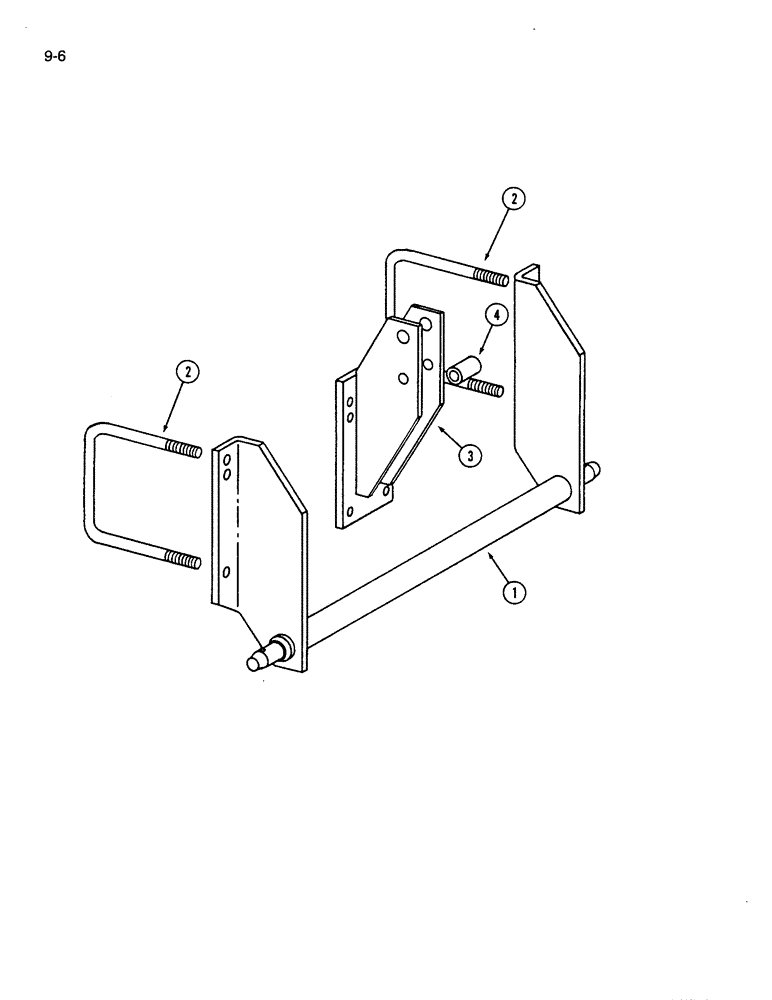

Запчасти Case IH 183 (9-06) - THREE POINT HITCH CATAGORY II, 4 ROW WIDE AND 6 ROW NARROW

1

149499C1

BRACKET

ASSEMBLY - lower hitch

1шт.

2

493975R3

U-BOLT,3/4" - 10 x 6 1/2", Steel

- 3/4 inch NC

2шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

495-81255

WASHER,0.78" ID x 1.5" OD x 0.18" Thk

- flat, 25/32 x 1-1/2 x 5/32 inch

4шт.

3

149496C1

PLATE

BRACKET ASSEMBLY - hitch mast

1шт.

413-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 5

- hex, 5/8 NC x 7 inch

4шт.

131-1130

LOCK NUT,5/8"-11, GA

NUT - 5/8 inch, center lock

4шт.

4

462425R1

SPACER

- upper link

1шт.

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x 4 inch

1шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex lock, 3/4 inch NC

1шт.
