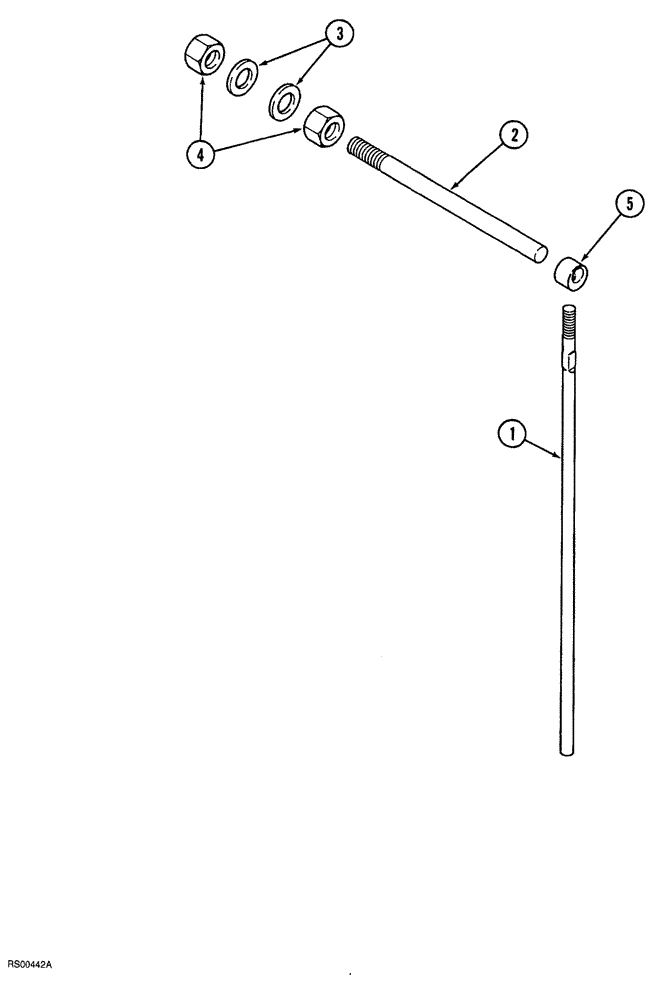

Запчасти Case IH 1820 (09-042) - DRIVING GUIDE

1

492631R1

ROD

GUIDE row

1шт.

2

525331R1

ROD

extension row guide

1шт.

3

495-51066

WASHER,9/16" x 1 1/4" x .1"

flat, 21/32" x 1-1/4" x 3/32"

2шт.

4

425-1010

NUT,5/8"-11, G5

2шт.

5

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

ASSEMBLY locking, Includes: Ref. 5

1шт.

485-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

square head, cup point, 1/2" NC x 5/8"

1шт.
